IPD85P04P4L-06 - Power-Transistor

Infineon

📥 Download Datasheet

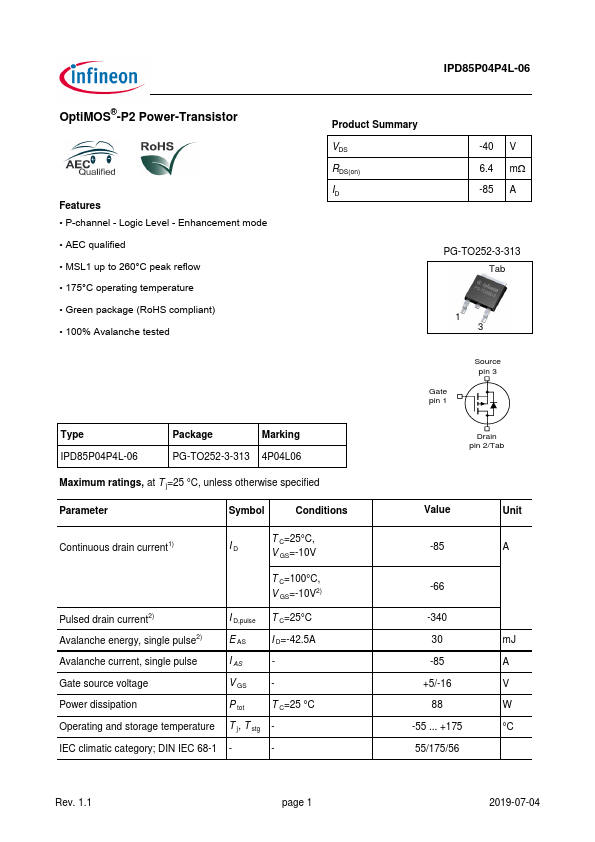

IPD85P04P4L-06 Datasheet Preview — Preview of IPD85P04P4L-06 PDF

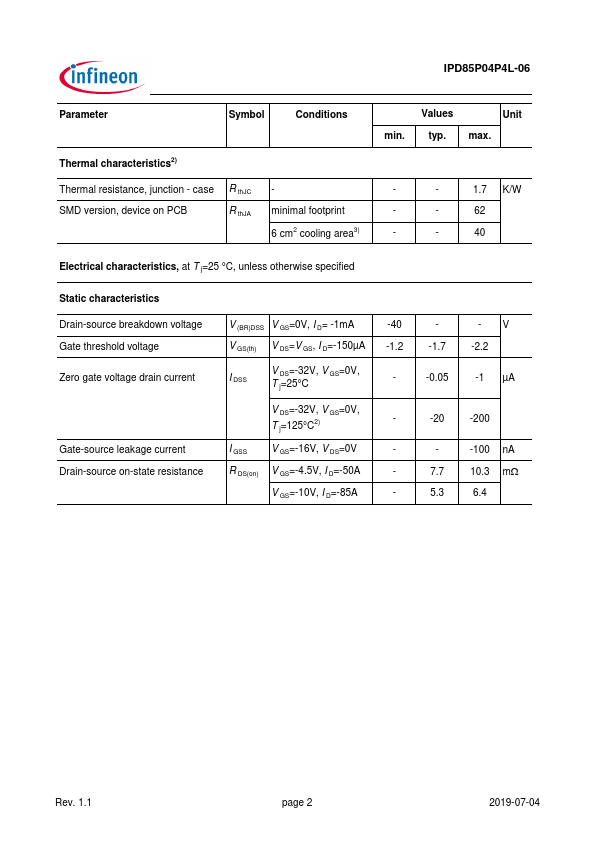

datasheet Preview Page 2

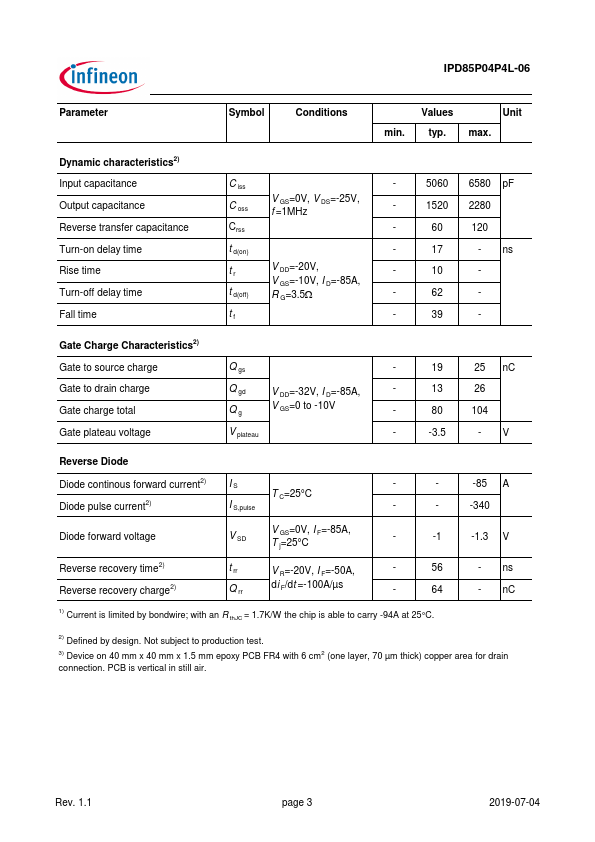

datasheet Preview Page 3

Datasheet Details

Part number	IPD85P04P4L-06
Manufacturer	Infineon ↗
File Size	279.69 KB
Description	Power-Transistor
Datasheet	IPD85P04P4L-06_Infineon.pdf

IPD85P04P4L-06 Product details

Features

P-channel - Logic Level - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (RoHS compliant).
100% Avalanche tested Product Summary VDS RDS(on) ID -40 V 6.4 mW -85 A PG-TO252-3-313 Tab 1 3 Gate pin 1 Source pin 3 Type IPD85P04P4L-06 Package Marking PG-TO252-3-313 4P04L06 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain.
