TLD1310

3 Channel High Side Current Source

TLD1310 Features

* 3 Channel device with integrated output stages (current sources), optimized to drive LEDs with output current up to 120 mA per channel

* Low current consumption in sleep mode

* PWM-operation supported via VS- and EN-pin

* Output current adjustable via external low p

TLD1310 General Description

The LITIX™ Basic TLD1310EL is a three channel high side driver IC with integrated output stages. It is designed to control LEDs with a current up to 120 mA. In typical automotive applications the device is capable to drive i.e. 3 red LEDs per chain (total 9 LEDs) with a current up to 60 mA, which is.

TLD1310 Datasheet (614.41 KB)

Preview of TLD1310 PDF

Datasheet Details

Part number:

TLD1310

Manufacturer:

Infineon ↗

File Size:

614.41 KB

Description:

3 channel high side current source.

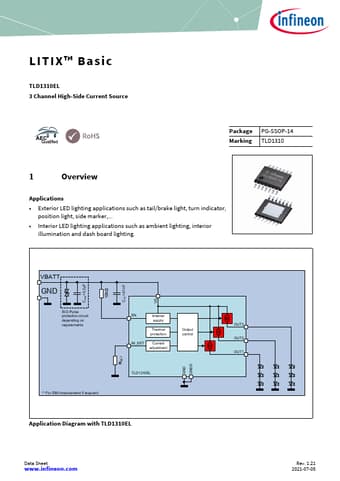

LITIX™ Basic TLD1310EL 3 Channel High-Side Current Source Package PG-SSOP-14 Marking TLD1310 1 Overview Applications

* Exterior LED lighti.
