TLD1312EL Datasheet, Source, Infineon

TLD1312EL Features

  • Source
  • 3 Channel device with integrated output stages (current sources), optimized to drive LEDs
  • Output current up to 120mA per channel
  • Low current consumption in

PDF File Details

Part number:

TLD1312EL

Manufacturer:

Infineon ↗

File Size:

1.47MB

Download:

📄 Datasheet

Description:

3 channel high side current source. The LITIXTM Basic TLD1312EL is a three channel high side driver IC with integrated output stages. It is designed to control LEDs with

Datasheet Preview: TLD1312EL 📥 Download PDF (1.47MB)

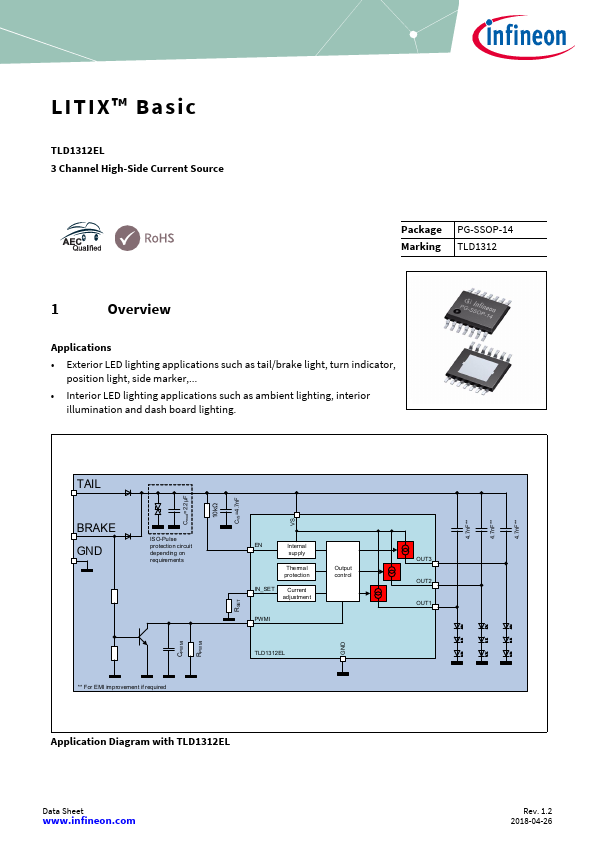

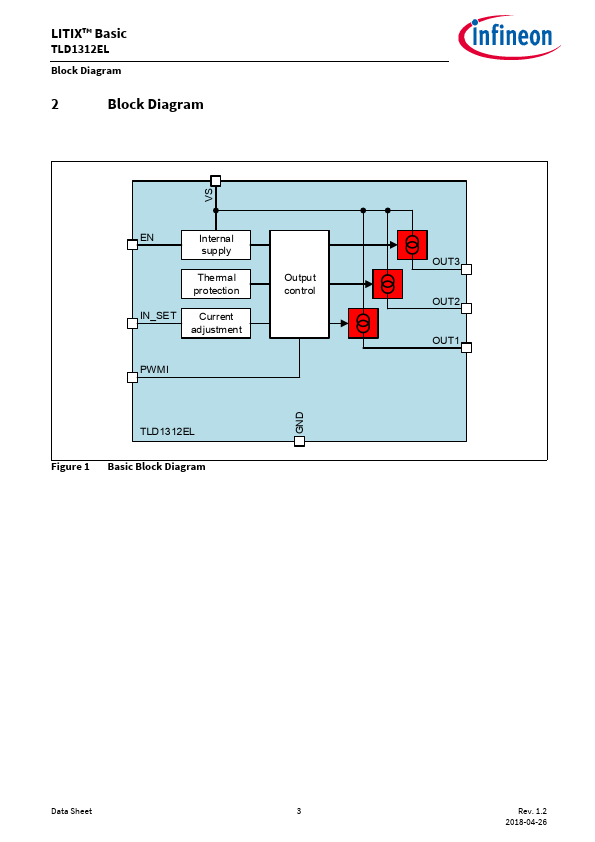

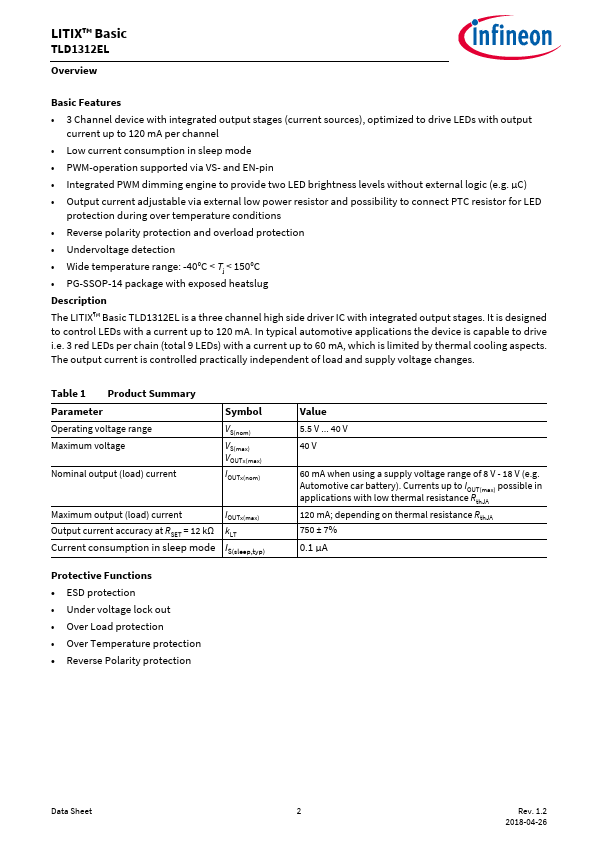

Page 2 of TLD1312EL Page 3 of TLD1312EL

TLD1312EL Application

  • Applications the device is capable to drive i.e. 3 red LEDs per chain (total 9 LEDs) with a current up to 60mA, which is limited by thermal cooling
