TLD1310EL, 3 Channel High Side Current Source

LITIX™ Basic TLD1310EL 3 Channel High-Side Current Source Package PG-SSOP-14 Marking TLD1310 1 Overview Applications * Exterior LED lighti.
The LITIX™ Basic TLD1310EL is a three channel high side driver IC with integrated output stages.

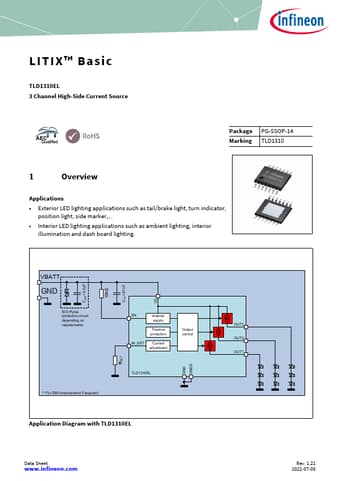

datasheet Preview Page 1 from Datasheet4u.com

TLD1310EL-Infineon.pdf

TLD1310EL Datasheet Preview — Preview of TLD1310EL PDF

Datasheet Details

Part number:

TLD1310EL

Manufacturer:

Infineon ↗

File Size:

614.41 KB

Description:

3 Channel High Side Current Source

Features

* 3 Channel device with integrated output stages (current sources), optimized to drive LEDs with output current up to 120 mA per channel
* Low current consumption in sleep mode
* PWM-operation supported via VS- and EN-pin
* Output current adjustable via external low p

Applications

* Exterior LED lighting applications such as tail/brake light, turn indicator, position light, side marker,
* Interior LED lighting applications such as ambient lighting, interior illumination and dash board lighting. VBATT GND IS O-Pu lse protection circuit depending on req uire m
