TLD1313EL Datasheet, Driver, Infineon

TLD1313EL Features

  • Driver
  • Overview 3 Channel device with integrated output stages (current sources), optimized to drive LEDs Output current up to 120mA per chan

PDF File Details

Part number:

TLD1313EL

Manufacturer:

Infineon ↗

File Size:

1.68MB

Download:

📄 Datasheet

Description:

Basic led driver. The Basic LED Driver TLD1313EL is a three channel high side driver IC with integrated output stages. It is designed to control LEDs w

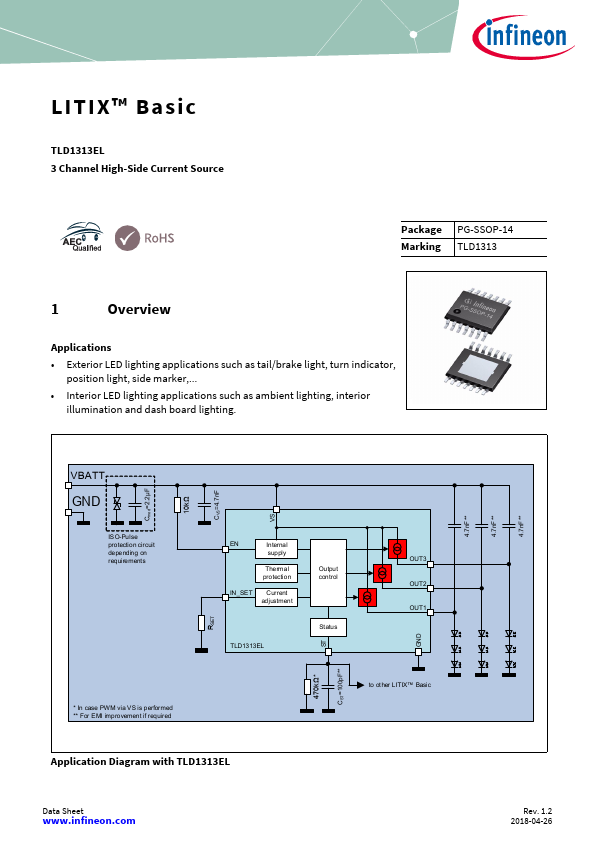

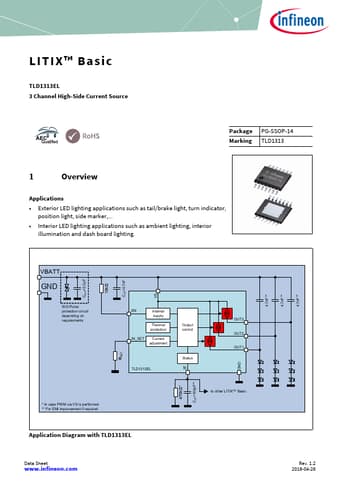

Datasheet Preview: TLD1313EL 📥 Download PDF (1.68MB)

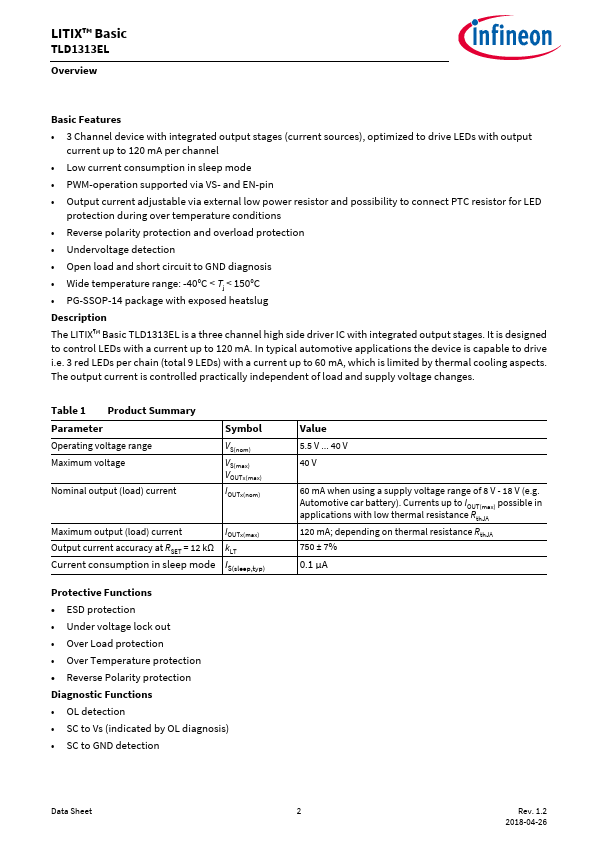

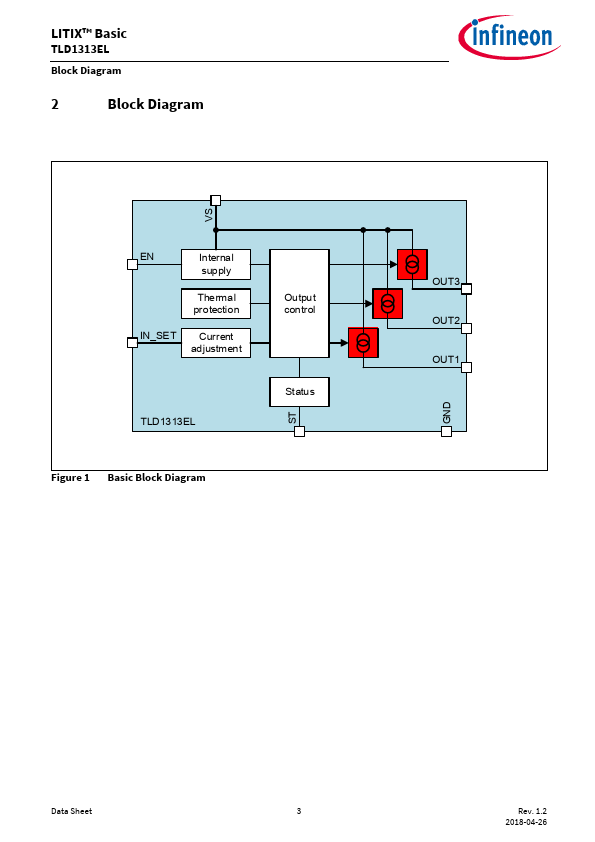

Page 2 of TLD1313EL Page 3 of TLD1313EL

TLD1313EL Application

  • Applications the device is capable to drive i.e. 3 red LEDs per chain (total 9 LEDs) with a current up to 60mA, which is limited by thermal cooling

TAGS

TLD1313EL
Basic
LED
Driver
Infineon
