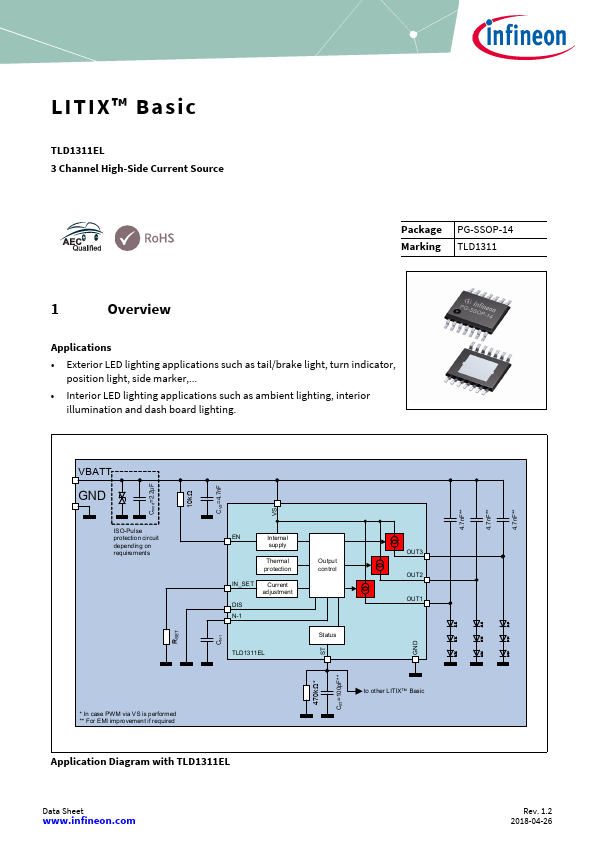

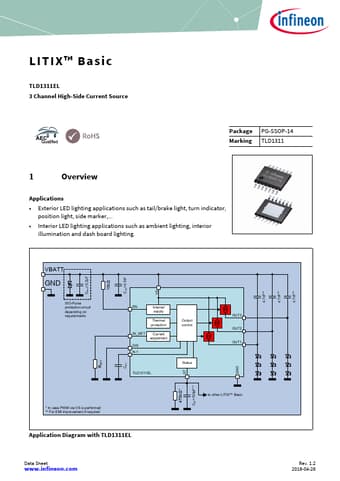

TLD1311EL Datasheet, Source, Infineon

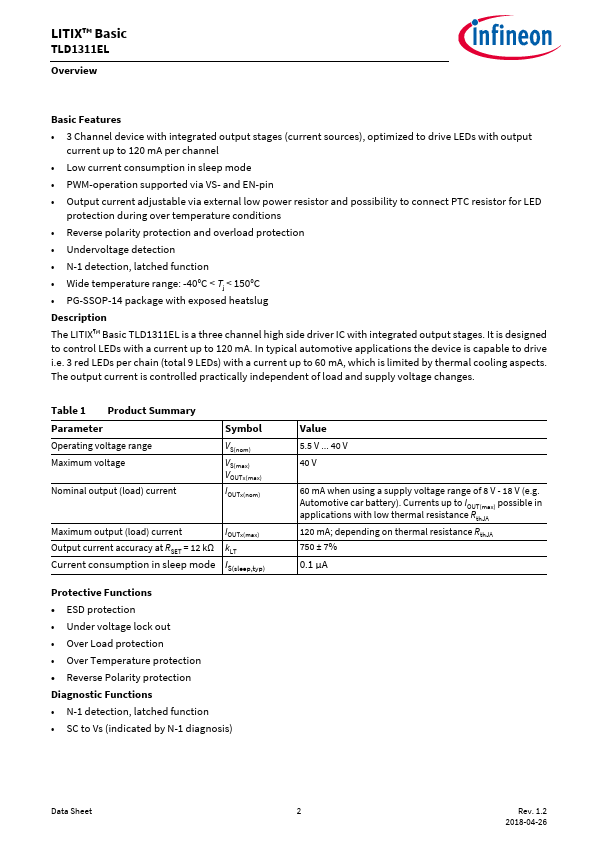

TLD1311EL Features

• Source
• 3 Channel device with integrated output stages (current sources), optimized to drive LEDs
• Output current up to 120mA per channel
• Low current consumption in

PDF File Details

Part number:

TLD1311EL

Manufacturer:

Infineon ↗

File Size:

1.50MB

Download:

📄 Datasheet

Description:

3 channel high side current source. The LITIXTM Basic TLD1311EL is a three channel high side driver IC with integrated output stages. It is designed to control LEDs with

TLD1311EL Application

• Applications the device is capable to drive i.e. 3 red LEDs per chain (total 9 LEDs) with a current up to 60mA, which is limited by thermal cooling
