TLD6098-2ES - Multitopology dual-channel DC-DC controller

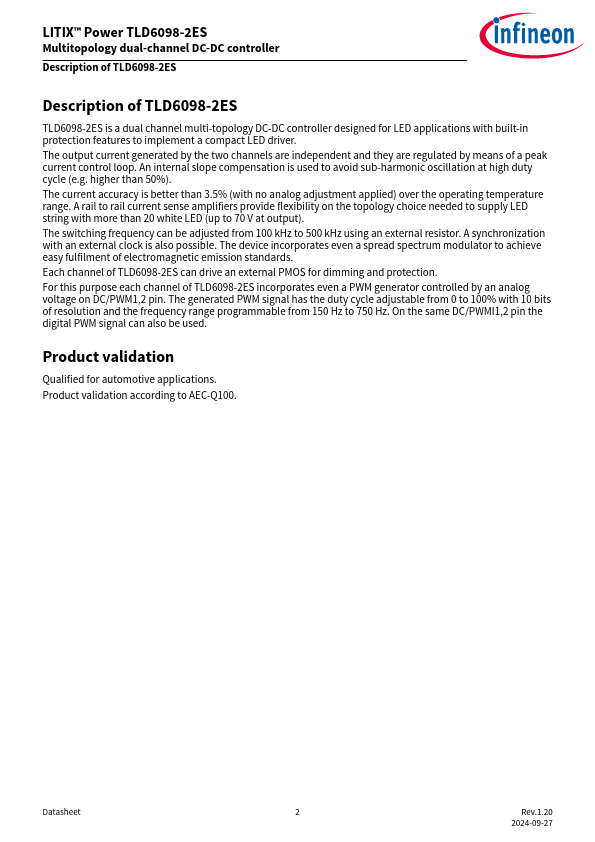

TLD6098-2ES Description

LITIX™ Power TLD6098-2ES Multitopology dual-channel DC-DC controller .
of TLD6098-2ES Description of TLD6098-2ES TLD6098-2ES is a dual channel multi-topology DC-DC controller designed for LED applications with built-in pr.

TLD6098-2ES Features

* Dual channel device
* Wide input voltage (up to 58 V) and output voltage range (up to 70 V)
* Switching frequency range from 100 kHz to 500 kHz and synchronization at 2.2 MHz with an external clock source
* EMC optimized device
* Analog adjust input

TLD6098-2ES Applications

* LED driver for: front light module, rear light module, interior light

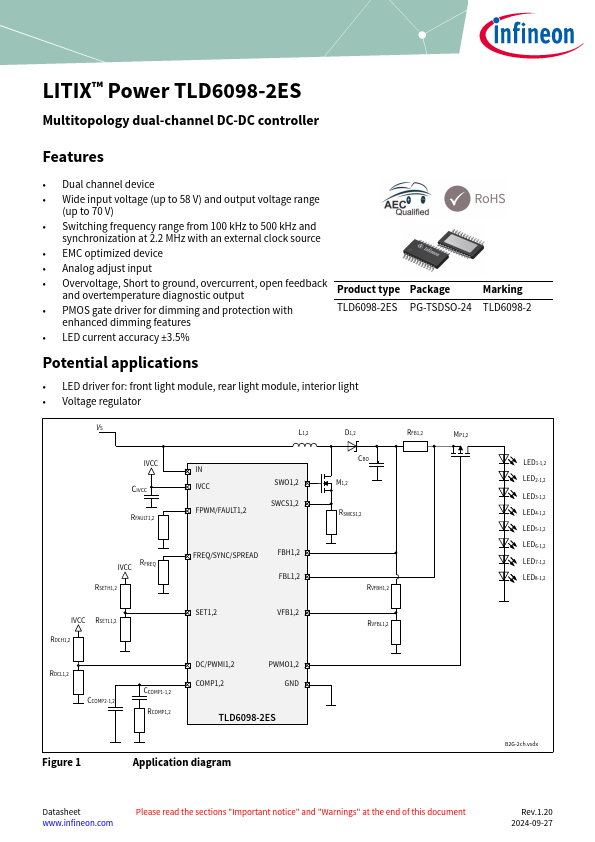

* Voltage regulator VS IVCC CIVCC RFAULT1,2 L1,2 IN IVCC FPWM/FAULT1,2 SWO1,2 SWCS1,2 D1,2 CBO M1,2 RSWCS1,2 RFB1,2 IVCC RFREQ RSETH1,2 IVCC RSETL1,2 RDCH1,2 RDCL1,2 CCOMP2-1,2 CCOMP1-1,2 RCOMP1,2 FRE

📥 Download Datasheet

Preview of TLD6098-2ES PDF
datasheet Preview Page 2 datasheet Preview Page 3
