TLD6S10AH, 10V - 43V Surface Mount Transient Voltage Suppressor

TLD6S10AH * TLD6S43AH Taiwan Semiconductor 4600W, 10V * 43V Surface Mount Transient Voltage Suppressor .

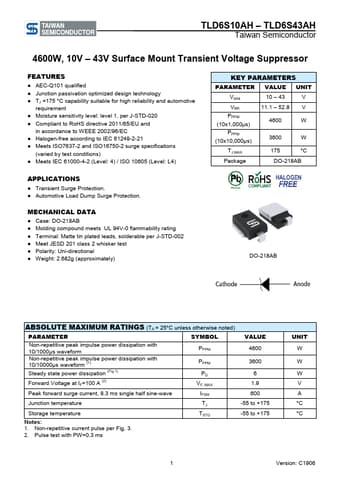

datasheet Preview Page 1 from Datasheet4u.com

TLD6S10AH-TaiwanSemiconductor.pdf

TLD6S10AH Datasheet Preview — Preview of TLD6S10AH PDF

Datasheet Details

Part number:

TLD6S10AH

Manufacturer:

Taiwan Semiconductor

File Size:

354.99 KB

Description:

10V - 43V Surface Mount Transient Voltage Suppressor

Features

* AEC-Q101 qualified
* Junction passivation optimized design technology
* TJ =175 °C capability suitable for high reliability and automotive requirement
* Moisture sensitivity level: level 1, per J-STD-020
* Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96

Applications

* Transient Surge Protection.
* Automotive Load Dump Surge Protection. KEY PARAMETERS PARAMETER VALUE UNIT VWM 10
* 43 V VBR PPPM (10x1,000μs) PPPM (10x10,000μs) 11.1
* 52.8 4600 3600 V W W TJ MAX Package 175 °C DO-218AB MECHANICAL DATA
* Case: DO-218AB
* M
