TLD6098-1EP - Multitopology single-channel DC-DC controller

TLD6098-1EP Description

LITIX™ Power TLD6098-1EP Multitopology single-channel DC-DC controller .
of TLD6098-1EP Description of TLD6098-1EP TLD6098-1EP is a multi-topology DC-DC controller designed for LED applications with built-in protection feat.

TLD6098-1EP Features

* Wide input voltage (up to 58 V) and output voltage range (up to 70 V)
* Switching frequency range from 100 kHz to 500 kHz and synchronization at 2.2 MHz with an external clock source
* EMC optimized device
* Analog adjust input
* Overvoltage, Short to g

TLD6098-1EP Applications

* LED driver for: front light module, rear light module, interior light
* Voltage regulator VS IVCC CIVCC RFAULT IN IVCC FPWM/FAULT L1 SWO SWCS D1 CBO MN RSWCS RFB MP IVCC RFREQ RSETH IVCC RDCH RSETL RDCL CCOMP2 CCOMP1 RCOMP FREQ/SYNC/SPREAD FBH FBL SET VFB DC/PWMI

📥 Download Datasheet

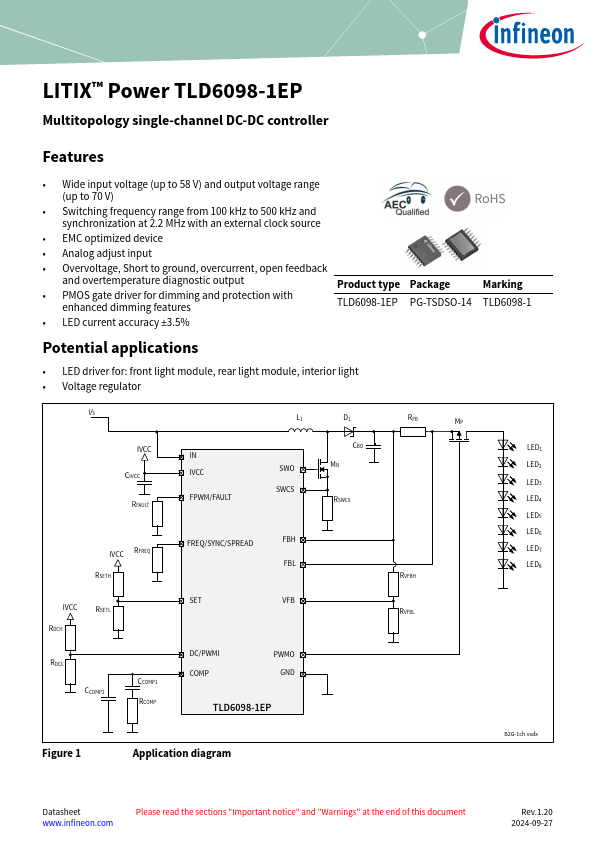

Preview of TLD6098-1EP PDF

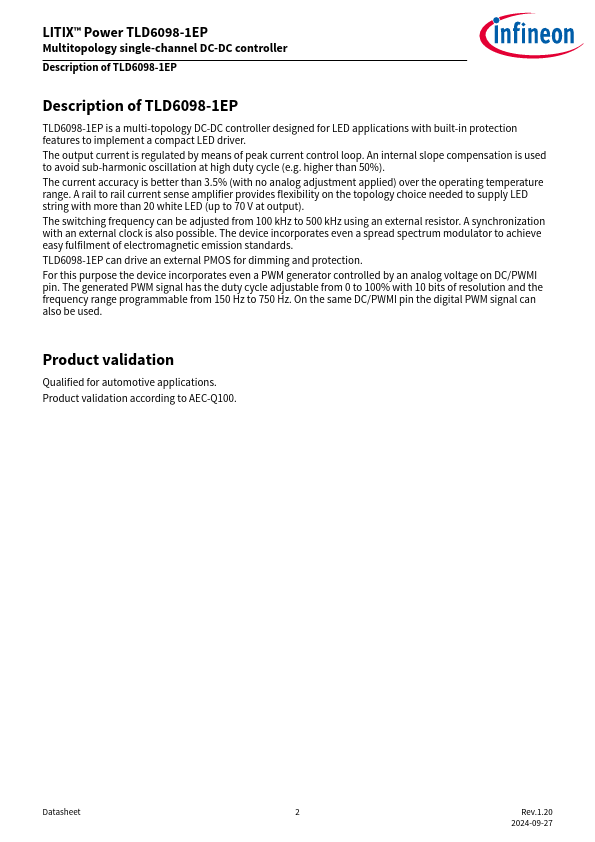

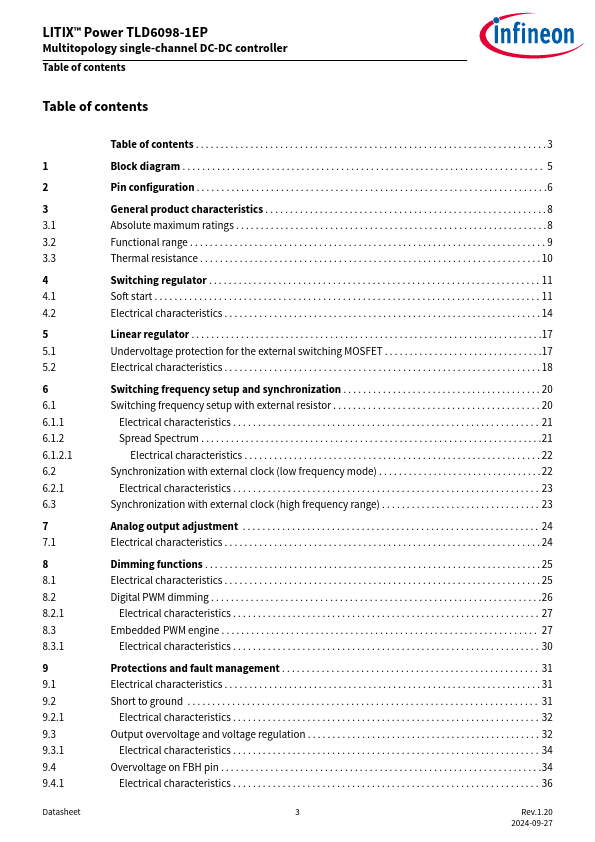

datasheet Preview Page 2 datasheet Preview Page 3
