ICS83948I-01, 1-TO-12 DIFFERENTIAL-TO-LVCMOS FANOUT BUFFER

Integrated Circuit Systems, Inc.ICS83948I-01 LOW SKEW, 1-TO-12 DIFFERENTIAL-TO-LVCMOS FANOUT BUFFER .
The ICS83948I-01 is a low skew, 1-to-12 Differential-to-LVCMOS Fanout Buffer and a member HiPerClockS™ of the HiPerClockS™ family of High Performance.

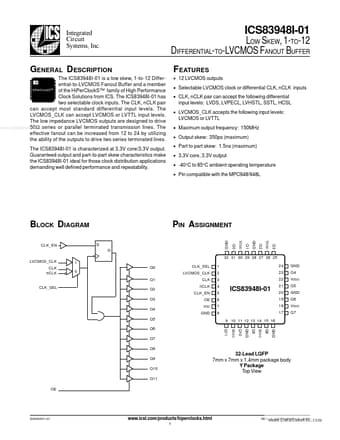

datasheet Preview Page 1 from Datasheet4u.com

ICS83948I-01_IntegratedCircuitSystems.pdf

ICS83948I-01 Datasheet Preview — Preview of ICS83948I-01 PDF

Datasheet Details

Part number:

ICS83948I-01

Manufacturer:

Integrated Circuit Systems

File Size:

121.98 KB

Description:

1-TO-12 DIFFERENTIAL-TO-LVCMOS FANOUT BUFFER

Features

* 12 LVCMOS outputs
* Selectable LVCMOS clock or differential CLK, nCLK inputs
* CLK, nCLK pair can accept the following differential input levels: LVDS, LVPECL, LVHSTL, SSTL, HCSL
* LVCMOS_CLK accepts the following input levels: LVCMOS or LVTTL
* Maximum outp

Applications

* demanding well defined performance and repeatability. BLOCK DIAGRAM CLK_EN D Q LVCMOS_CLK CLK nCLK 1 Q0 0 Q1 CLK_SEL Q2 Q3 Q4 Q5 Q6 Q7 Q8 Q9 Q10 Q11 OE PIN ASSIGNMENT GND GND VDDO VDDO Q0 Q1 Q2 Q3 32 31 30 29 28 27 26 25 CLK_SEL LVCMOS_CLK CLK nCLK CLK_EN OE VDD GND 1 2 3 4 5 6 7 8 9 10 11 12 13
