ICS83948I-147 - 1-TO-12 DIFFERENTIAL-TO-LVCMOS FANOUT BUFFER

Integrated Circuit Systems

ICS83948I-147 Description

Integrated Circuit Systems, Inc.ICS83948I-147 LOW SKEW, 1-TO-12 DIFFERENTIAL-TO-LVCMOS/LVTTL FANOUT BUFFER .
The ICS83948I-147 is a low skew, 1-to-12 Differential-to-LVCMOS/LVTTL Fanout Buffer and HiPerClockS™ a member of the HiPerClockS™ family of High Perfo.

ICS83948I-147 Features

* Twelve LVCMOS/LVTTL outputs
* Selectable LVCMOS/LVTTL clock or differential CLK, nCLK inputs
* CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL, SSTL
* LVCMOS_CLK accepts the following input levels: LVCMOS or LVTTL

ICS83948I-147 Applications

* demanding well defined performance and repeatability. BLOCK DIAGRAM CLK_EN D Q LE LVCMOS_CLK CLK nCLK 1 Q0 0 Q1 CLK_SEL Q2 Q3 Q4 Q5 Q6 Q7 Q8 Q9 Q10 Q11 OE PIN ASSIGNMENT GND GND VDDO VDDO Q0 Q1 Q2 Q3 32 31 30 29 28 27 26 25 CLK_SEL LVCMOS_CLK CLK nCLK CLK_EN OE VDD GND 1 2 3 4 5 6 7 8 9 10 11 12

📥 Download Datasheet

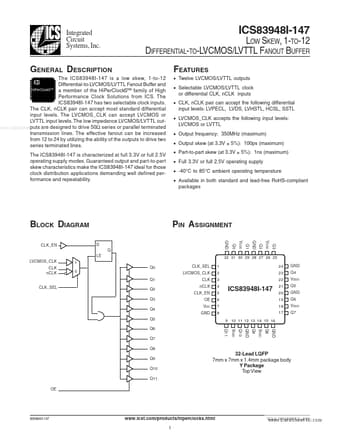

ICS83948I-147 Datasheet Preview — Preview of ICS83948I-147 PDF

Datasheet Details

Part number: ICS83948I-147
Manufacturer: Integrated Circuit Systems
File Size: 141.04 KB
Datasheet: ICS83948I-147_IntegratedCircuitSystems.pdf
Description: 1-TO-12 DIFFERENTIAL-TO-LVCMOS FANOUT BUFFER
