ICS8624 - 1-TO-5 DIFFERENTIAL-TO-HSTL ZERO DELAY BUFFER

Integrated Circuit Systems

ICS8624 Description

Integrated Circuit Systems, Inc.ICS8624 LOW SKEW, 1-TO-5 DIFFERENTIAL-TO-HSTL ZERO DELAY BUFFER .
The ICS8624 is a high performance, 1-to-5 Differential-to-HSTL zero delay buffer and HiPerClockS™ a member of the HiPerClockS™ family of High Performa.

ICS8624 Features

* Fully integrated PLL
* 5 differential HSTL outputs
* Selectable differential CLKx, nCLKx input pairs
* CLKx, nCLKx pairs can accept the following differential input levels: LVPECL, LVDS, HSTL, SSTL, HCSL
* Output frequency range: 31.25MHz to 700MHz

ICS8624 Applications

* ICS BLOCK DIAGRAM Q0 nQ0 PLL_SEL ÷4, ÷8 0 1 1 PIN ASSIGNMENT PLL_SEL GND GND VDDO VDDA nQ4 VDD Q4 Q1 nQ1 0 CLK0 nCLK0 CLK1 nCLK1 CLK_SEL FB_IN nFB_IN 32 31 30 29 28 27 26 25 Q2 nQ2 Q3 nQ3 SEL0 SEL1 CLK0 nCLK0 CLK1 nCLK1 CLK_SEL MR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VDD nFB_IN FB_IN GND

📥 Download Datasheet

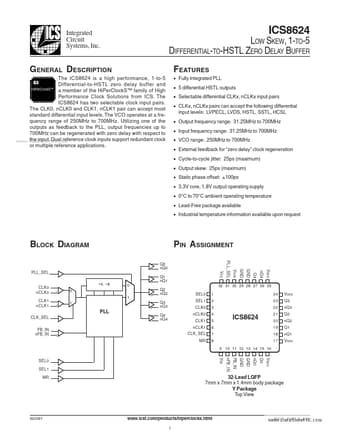

ICS8624 Datasheet Preview — Preview of ICS8624 PDF

Datasheet Details

Part number: ICS8624
Manufacturer: Integrated Circuit Systems
File Size: 320.43 KB
Datasheet: ICS8624_IntegratedCircuitSystems.pdf
Description: 1-TO-5 DIFFERENTIAL-TO-HSTL ZERO DELAY BUFFER
