ICS8MH0 (ICS8Mx0) Crystal Oscillator

1 2 3 4 OE GND OUT VDD Input Power Output Power No internal terminator Internal pull-up resistor Output enable pin. LVCMOS/LVTTL interface levels. Power supply ground. Single-ended clock output. LVCMOS/LVTTL interface levels. Power supply pin. ICS8MX0 Crystal Oscillator: LVCMOS/LVTTL CLOCK OUTPUT .

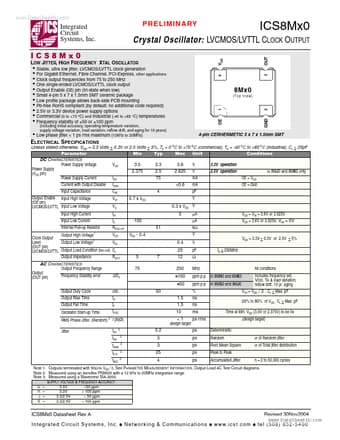

www.DataSheet4U.com Integrated Circuit Systems, Inc. PRELIMINARY ICS8Mx0 OUT VDD Crystal Oscillator: LVCMOS/LVTTL CLOCK OUTPUT ICS8Mx0 LOW JITTER, HIGH FREQUENCY XTAL OSCILLATOR (including initial accuracy, operating temperature variation, supply voltage variation, load variation, reflow drift, and aging for 10 years) Low phase jitter < 1 ps rms maximum (12kHz to 20MHz) 4-pin CERHERMETIC 5 x 7 x 1.5mm SMT ELECTRICAL SPECIFICATIONS Unless stated otherwise, VDD = 3.3 Volts + 0..
