ICS9169A-70 - Frequency Generator for Workstation Systems

Description

The ICS9169A-70 is a low-cost frequency generator designed specifically for workstation or PC system clocks.

The integrated buffer minimizes skew and provides all the clocks required.

A 14.318 MHz XTAL oscillator provides the reference clock to generate standard Pentium frequencies.

Features

9 PCI outputs selectable from 30 to 66.6MHz 3 SCSI outputs, selectable from 10 to 80MHz 500ps skew window for all synchronous clock edges Integrated buffer outputs drive up to 30pF loads 500ps output to output skew window Buffers drive 30pF loads nominally 0.8V/ns skew rate 3.0V - 3.7Vsupply range 32-pin SOIC package 48 MHz clock for USB support and 24 MHz clock for FD DataShee DataSheet4U. com Pin Config.

Datasheet Details

Part number	ICS9169A-70
Manufacturer	Integrated Circuit Systems
File Size	272.52 KB
Description	Frequency Generator for Workstation Systems
Datasheet	ICS9169A-70 Datasheet
Additional preview pages of the ICS9169A-70 datasheet.

📁 Similar Datasheet

ICS9169-01 - Frequency Generator and Integrated Buffers (Renesas)

ICS9112-26 - Low Skew Output Buffer (Renesas)

ICS9112A-16 - Low Skew Output Buffer (Renesas)

ICS91305 - High Performance Communication Buffer (Renesas)

ICS91305I - High Performance Communication Buffer (Renesas)

ICS9148-25 - Pentium/Pro System and Cyrix Clock Chip (ICST)

ICS91718 - Clock Generator (Renesas)

ICS91720 - Clock Generator (Renesas)

ICS91730 - Clock Generator (Renesas)

ICS9173B - VIDEO GENLOCK PLL (Renesas)

Full PDF Text Transcription

Click to expand full text

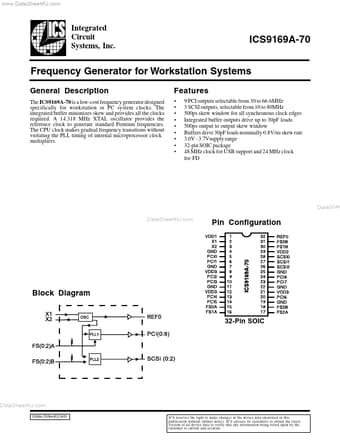

www.DataSheet4U.com Integrated Circuit Systems, Inc. ICS9169A-70 Frequency Generator for Workstation Systems General Description The ICS9169A-70 is a low-cost frequency generator designed specifically for workstation or PC system clocks. The integrated buffer minimizes skew and provides all the clocks required. A 14.318 MHz XTAL oscillator provides the reference clock to generate standard Pentium frequencies. The CPU clock makes gradual frequency transitions without violating the PLL timing of internal microprocessor clock multipliers. Features • • • • • • • • • 9 PCI outputs selectable from 30 to 66.
