ICS9169C-272 Datasheet - Integrated Circuit Systems

ICS9169C-272 Frequency Generator

The ICS9169C-272 is a low-cost frequency generator designed specifically for Pentium based chip set systems. The integrated buffer minimizes skew and provides all the clocks required. A 14.318 MHz XTAL oscillator provides the reference clock to generate standard Pentium frequencies. The CPU clock ma.

ICS9169C-272 Features

* Twelve selectable CPU clocks operate up to 83.3MHz Maximum CPU jitter of ± 200ps Six BUS clocks support sync or async bus operation 250ps skew window for CPU outputs, 500ps skew window for BUS outputs

ICS9169C-272_IntegratedCircuitSystems.pdf

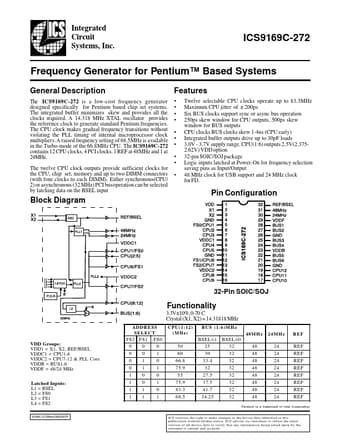

Preview of ICS9169C-272 PDF
ICS9169C-272 Datasheet Preview Page 2 ICS9169C-272 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS9169C-272

Manufacturer:

Integrated Circuit Systems

File Size:

359.15 KB

Description:

Frequency generator.
