ICS9169C-231 Datasheet - Integrated Circuit Systems

ICS9169C-231 Frequency Generator for Pentium Based Systems

The ICS9169C-231 is a low-cost frequency generator designed specifically for Pentium and Pentium-Pro based chip set systems. The integrated buffer minimizes skew and provides all the clocks required. A 14.318 MHz XTAL oscillator provides the reference clock to generate standard Pentium frequencies. .

ICS9169C-231 Features

* Eight selectable CPU clocks operate up to 83.3 MHz Frequency selections include Turbo-mode speed of 68.5 MHz Maximum CPU jitter of ±200ps Six BUS clocks support sync or async bus operation 2

ICS9169C-231_IntegratedCircuitSystems.pdf

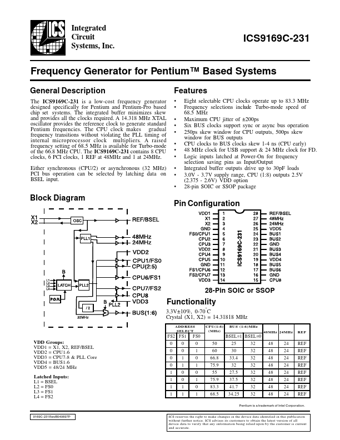

Preview of ICS9169C-231 PDF
ICS9169C-231 Datasheet Preview Page 2 ICS9169C-231 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS9169C-231

Manufacturer:

Integrated Circuit Systems

File Size:

293.06 KB

Description:

Frequency generator for pentium based systems.
