ICS9169C-36 Low Cost 20-Pin Frequency Generator

ICS9169C-36 Description

www.DataSheet4U.com Integrated Circuit Systems, Inc.ICS9169C-36 Low Cost 20-Pin Frequency Generator .
The ICS9169C-36 generates the I/O clocks needed as a satellite clock generator to a CPU and PCI clock source (such as the ICS9148-01 or ICS9150-01).

ICS9169C-36 Features

* Generator for periphary clock chips as companion device to CPU/SDRAM/PCI generator. Accepts clock input at X1 pin or crystal across X1, X2 pins as 14.31818 MHz nominal inputs. Three REF clock buffer outputs (SREF is Strong) Two 48MHz and on

ICS9169C-36 Applications

* Ground Output enable (Tri-states all outputs when held low). Has pullup 3.3V Audio clock, runs per select table 3.3V Audio clock, runs per select table Frequency mode select pins. Has pullup. 3.3V clock, runs @ 24 MHz 3.3V Clock, runs @ 48 MHz 3.3V clock, runs @ 1x X1 Strong reference clock OUT 3.3

📥 Download Datasheet

Preview of ICS9169C-36 PDF

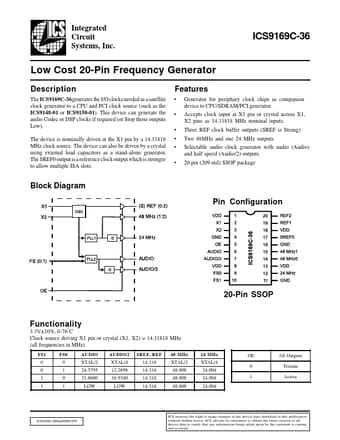

datasheet Preview Page 2 datasheet Preview Page 3
