ICS9169C-271 Datasheet - Integrated Circuit Systems

ICS9169C-271 Frequency Generator

The ICS9169C-271 is a low-cost frequency generator designed specifically for Pentium based chip set systems. The integrated buffer minimizes skew and provides all the clocks required. A 14.318 MHz XTAL oscillator provides the reference clock to generate standard Pentium frequencies. The CPU clock ma.

ICS9169C-271 Features

* Twelve selectable CPU clocks operate up to 83.3MHz Maximum CPU jitter of ± 200ps Six BUS clocks support sync or async bus operation ±250ps skew for all synchronous clock edges CPU clocks BUS clocks sk

ICS9169C-271_IntegratedCircuitSystems.pdf

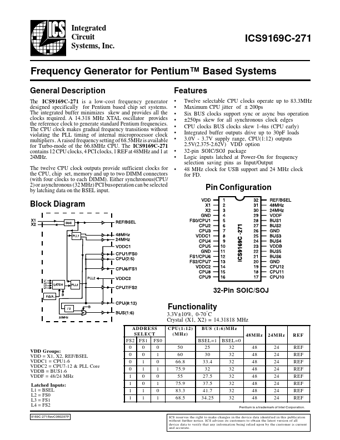

Preview of ICS9169C-271 PDF
ICS9169C-271 Datasheet Preview Page 2 ICS9169C-271 Datasheet Preview Page 3

Datasheet Details

Part number:

ICS9169C-271

Manufacturer:

Integrated Circuit Systems

File Size:

317.31 KB

Description:

Frequency generator.
