ICS932S203

Frequency Generator

ICS932S203 Features

* 4 Differential CPU Clock Pairs @ 3.3V

* 7 PCI (3.3V) @ 33.3MHz

* 3 PCI_F (3.3V) @ 33.3MHz

* 1 USB (3.3V) @ 48MHz

* 1 DOT (3.3V) @ 48MHz

* 1 REF (3.3V) @ 14.318MHz

* 1 3V66 (3.3V) @ 66.6MHz

* 1 VCH/3V66 (3.3V) @ 48MHz or 66.6MHz

ICS932S203 General Description

Free running PCI clock not affected by PCI_STOP# for power management. Ground pins for 3.3V supply PCI clock outputs 66MHz buffered 66MHz_OUT from 66MHz_IN input. 66MHz reference clocks, from internal VCO 66MHz input to buffered 66MHz_OUT and PCI clocks 66MHz reference clock, from internal VCO Invo.

ICS932S203 Datasheet (252.85 KB)

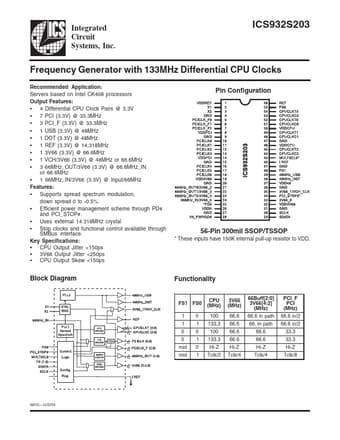

Preview of ICS932S203 PDF

Datasheet Details

Part number:

ICS932S203

Manufacturer:

Integrated Circuit Systems

File Size:

252.85 KB

Description:

Frequency generator.
Integrated Circuit Systems, Inc. ICS932S203 Frequency Generator with 133MHz Differential CPU Clocks Recommended Application: Servers based on Intel .
