ICS9LPRS436C - Low Power Clock

Product Overview

Integrated Device Technology

Datasheet Details

Part number	ICS9LPRS436C
Manufacturer	Integrated Device Technology
File Size	222.88 KB
Description	Low Power Clock
Datasheet	ICS9LPRS436C Datasheet

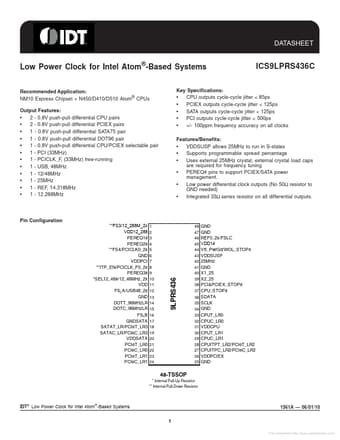

Additional preview pages of the ICS9LPRS436C datasheet.

Product details

Description

PIN # PIN NAME 1 FS3/12_288M_2x 2 VDD12_288 3 PEREQ1# TYPE DESCRIPTION I/O Frequency select latch input pin / 12.288MHz output, 3.3V PWR Power for 12.288MHz PLL and output buffer, nominal 3.3V.

Features

2 - 0.8V push-pull differential CPU pairs.
2 - 0.8V push-pull differential PCIEX pairs.
1 - 0.8V push-pull differential SATA75 pair.
1 - 0.8V push-pull differential DOT96 pair.
1 - 0.8V push-pull differential CPU/PCIEX selectable pair.
1 - PCI (33MHz).
1 - PCICLK_F, (33MHz) free-running.
1 - USB, 48MHz.
1 - 12/48MHz.
1 - 25MHz.
1 - REF, 14.318MHz.
1 - 12.288MHz ICS9LPRS436C Key Specifi.
