ICS9LP525-2

56-pin CK505 Clock

ICS9LP525-2 Datasheet (334.52 KB)

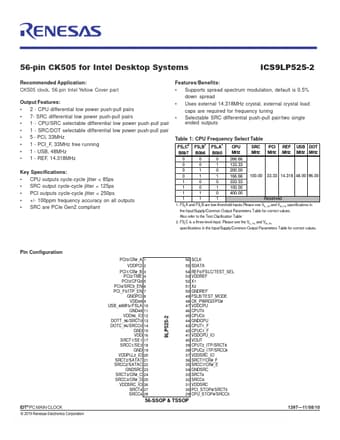

Preview of ICS9LP525-2 PDF Datasheet

Datasheet Details

Part number:

ICS9LP525-2

Manufacturer:

Renesas ↗

File Size:

334.52 KB

Description:

56-pin ck505 clock

ICS9LP525-2 Features

* 2 - CPU differential low power push-pull pairs

* 7- SRC differential low power push-pull pairs

* 1 - CPU/SRC selectable differential low power push-pull pair

* 1 - SRC/DOT selectable differential low power push-pull pair

* 5 - PCI, 33MHz

* 1 - PCI_F

ICS9LP525-2 General Description

PIN # PIN NAME 1 PCI0/CR#_A 2 VDDPCI 3 PCI1/CR#_B 4 PCI2/TME 5 PCI3/CFG0 6 PCI4/SRC5_EN 7 PCI_F5/ITP_EN 8 GNDPCI 9 VDD48 10 USB_48MHz/FSLA 11 GND48 12 VDD96_IO 13 DOTT_96/SRCT0 14 DOTC_96/SRCC0 15 GND 16 VDD 17 SRCT1/SE1 18 SRCC1/SE2 19 GND 20 VDDPLL3_IO 21 SRCT2/SATAT 22 SRCC2/SATAC 23 GNDSRC.
