ICS9LPRS501 - 64-PIN CK505 W/FULLY INTEGRATED VOLTAGE REGULATOR

ICS9LPRS501 Description

Datasheet 64-PIN CK505 W/FULLY INTEGRATED VOLTAGE REGULATOR + INTEGRATED SERIES RESISTOR ICS9LPRS501 Recommended Application: CK505 compliant clock.
PIN # PIN NAME 1 PCI0/CR#_A 2 VDDPCI 3 PCI1/CR#_B 4 PCI2/TME 5 PCI3 6 PCI4/SRC5_EN 7 PCI_F5/ITP_EN 8 GNDPCI 9 VDD48 10 USB_48MHz/FSLA 11 GND48 1.

ICS9LPRS501 Features

* 2 - CPU differential low power push-pull pairs
* 10 - SRC differential low power push-pull pairs
* 1 - CPU/SRC selectable differential low power push-pull pair
* 1 - SRC/DOT selectable differential low power push-pull pair
* 5 - PCI, 33MHz
* 1 - PCI

📥 Download Datasheet

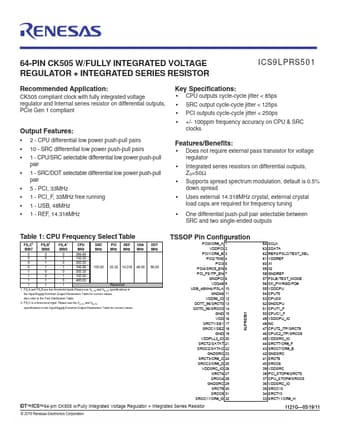

Preview of ICS9LPRS501 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS9LPRS501
Manufacturer
Renesas ↗
File Size
351.61 KB
Datasheet
ICS9LPRS501-Renesas.pdf
Description
64-PIN CK505 W/FULLY INTEGRATED VOLTAGE REGULATOR
