IDT71V2578S

128K X 36/ 256K X 18 3.3V Synchronous SRAMs 2.5V I/O/ Pipelined Outputs/ Burst Counter/ Single Cycle Deselect

IDT71V2578S Features

* 128K x 36, 256K x 18 memory configurations Supports high system speed: Commercial and Industrial:

* 150MHz 3.8ns clock access time

* 133MHz 4.2ns clock access time LBO input selects interleaved or linear burst mode Self-timed write cycle with global write control (GW), byte write ena

IDT71V2578S General Description

The IDT71V2576/78 are high-speed SRAMs organized as 128K x 36/256K x 18. The IDT71V2576/78 SRAMs contain write, data, address and control registers. Internal logic allows the SRAM to generate a selftimed write based upon a decision which can be left until the end of the write cycle. The burst mode f.

IDT71V2578S Datasheet (282.49 KB)

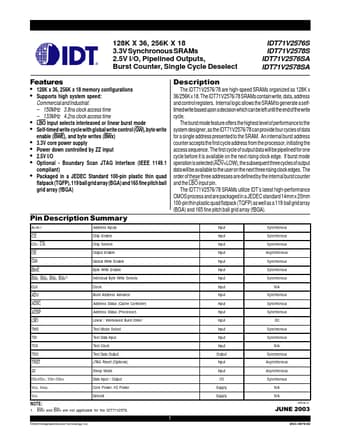

Preview of IDT71V2578S PDF

Datasheet Details

Part number:

IDT71V2578S

Manufacturer:

Integrated Device Technology

File Size:

282.49 KB

Description:

128k x 36/ 256k x 18 3.3v synchronous srams 2.5v i/o/ pipelined outputs/ burst counter/ single cycle deselect.
128K X 36, 256K X 18 3.3V Synchronous SRAMs 2.5V I/O, Pipelined Outputs, Burst Counter, Single Cycle Deselect x x IDT71V2576S IDT71V2578S IDT71V2576S.
