IDT7216L

16 x 16 PARALLEL CMOS MULTIPLIERS

IDT7216L Features

* 16 x 16 parallel multiplier with double precision product 16ns clocked multiply time Low power consumption: 120mA Produced with advanced submicron CMOS high performance technology IDT7216L is pin- and function compatible with TRW MPY016H/K

IDT7216L General Description

The IDT7216/IDT7217 are high-speed, low-power 16 x 16-bit multipliers ideal for fast, real time digital signal processing applications. Utilization of a modified Booths algorithm and IDT’s high-performance, submicron CMOS technology, has achieved speeds comparable to bipolar (20ns max.), at 1/10 th.

IDT7216L Datasheet (249.71 KB)

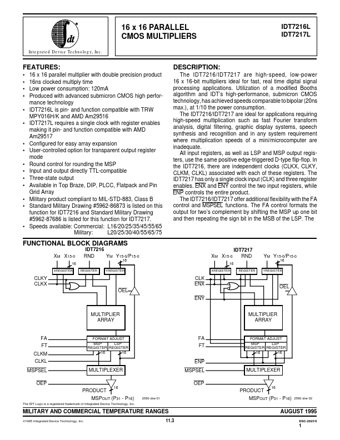

Preview of IDT7216L PDF

Datasheet Details

Part number:

IDT7216L

Manufacturer:

Integrated Device Technology

File Size:

249.71 KB

Description:

16 x 16 parallel cmos multipliers.
