IDT74CBTLV3244 LOW-VOLTAGE OCTAL BUS SWITCH

The octal bus switch has standard 244 pinouts. The CBTLV3244 is designed for asynchronous communication between data buses. Sets of four switches are controlled by one output Enable ( OE). When OE is low, the set of four bus switches is on and port A is connected to port B. When OE is high, the set.

IDT74CBTLV3244 Features

* Pin-out compatible with standard '244 logic 5Ω A/B bidirectional switch Isolation Under Power-Off Conditions Over-voltage tolerant Latch-up performance exceeds 100mA VCC = 2.3V - 3.6V, Normal Range ESD > 2000V per MIL-S

IDT74CBTLV3244_IntegratedDeviceTechnology.pdf

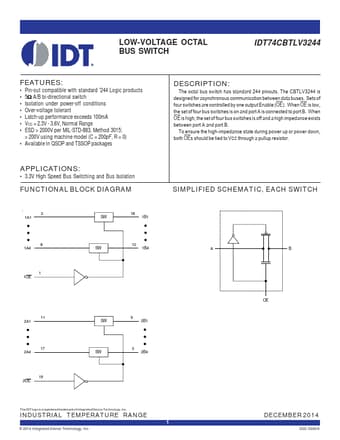

Preview of IDT74CBTLV3244 PDF
IDT74CBTLV3244 Datasheet Preview Page 2 IDT74CBTLV3244 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT74CBTLV3244

Manufacturer:

Integrated Device Technology

File Size:

95.26 KB

Description:

Low-voltage octal bus switch.
