IDT74CBTLV3253 LOW-VOLTAGE DUAL 1-OF-4 MULTIPLEXER/ DEMULTIPLEXER

The CBTLV3253 is a dual 1-of-4 high-speed multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The select (S0, S1) input controls the data flow. The multiplexer/ demultiplexer switches are disabled when the output-enable .

IDT74CBTLV3253 Features

* Functionally equivalent to QS3253 5Ω Switch Connection between Two Ports Isolation Under Power-Off Conditions Over-voltage tolerant Latch-up performance exceeds 100ma VCC = 2.3V - 3.6V, normal range ESD > 2000V per MIL-

IDT74CBTLV3253_IntegratedDeviceTechnology.pdf

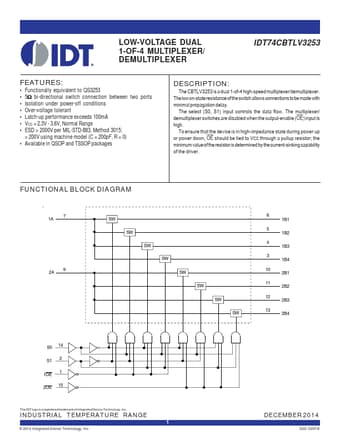

Preview of IDT74CBTLV3253 PDF
IDT74CBTLV3253 Datasheet Preview Page 2 IDT74CBTLV3253 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT74CBTLV3253

Manufacturer:

Integrated Device Tech

File Size:

102.70 KB

Description:

Low-voltage dual 1-of-4 multiplexer/ demultiplexer.
