IDT74CBTLV16210 - LOW-VOLTAGE 20-BIT BUS SWITCH

IDT74CBTLV16210 Description

IDT74CBTLV16210 LOW-VOLTAGE 20-BIT BUS SWITCH INDUSTRIAL TEMPERATURE RANGE LOW-VOLTAGE 20-BIT BUS SWITCH IDT74CBTLV16210 .
The CBTLV16210 operates as a single 20-bit bus switch or as a dual 10-bit bus switch,which provides high-speed switching.

IDT74CBTLV16210 Features

* 5Ω A/B bi-directional switch Isolation Under Power-Off Conditions Over-voltage tolerant Latch-up performance exceeds 100mA VCC = 2.3V - 3.6V, normal range ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R =

IDT74CBTLV16210 Applications

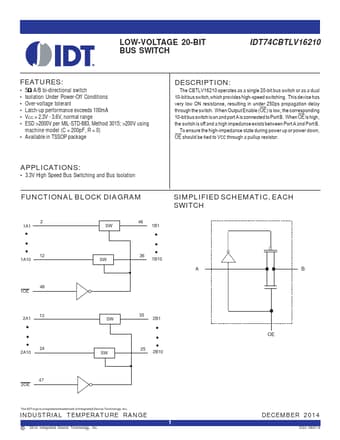

* 3.3V High Speed Bus Switching and Bus Isolation FUNCTIONAL BLOCK DIAGRAM SIMPLIFIED SCHEMATIC, EACH SWITCH 1B1 2 1A1 SW 46 1A10 12 SW 36 1B10 A B 48 1OE 2A1 13 SW 35 2B1 OE 24 SW 25 2A10 2B10 47 2OE INDUSTRIAL TEMPERATURE RANGE 1 c 2002 Integrated Device Technology
