IDT74CBTLV16292 LOW-VOLTAGE 12-BIT 1:2 MUX / DEMUX BUS SWITCH

The CBTLV16292 is a single 12-bit multiplexing / demultiplexing bus switch, which provides high speed switching. This device has very low ON resistance, resulting in under 250ps propagation delay throught the switch. The demultiplexer side has a 500Ω resistor (R pulldown) termination to GND to elim.

IDT74CBTLV16292 Features

* 5Ω A/B bi-directional switch

* Isolation Under Power-Off Conditions

* Make-before-break feature

* Over-voltage tolerant

* Internal 500Ω pull-down resistor to GND

* Latch-up performance exceeds 100mA

* VCC = 2.3V - 3.6V, normal range

IDT74CBTLV16292-IDT.pdf

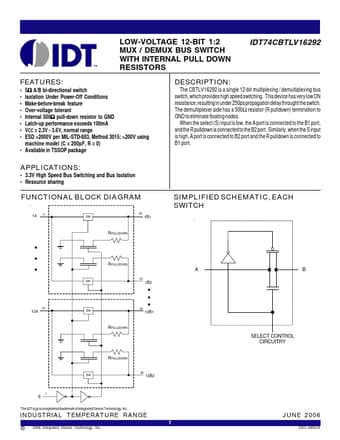

IDT74CBTLV16292 Datasheet Preview — Preview of IDT74CBTLV16292 PDF
