IDT74CBTLV16212 - LOW-VOLTAGE 24-BIT BUS EXCHANGE SWITCH

IDT74CBTLV16212 Description

IDT74CBTLV16212 LOW-VOLTAGE 24-BIT BUS EXCHANGE SWITCH INDUSTRIAL TEMPERATURE RANGE w w w .D a LOW-VOLTAGE 24-BIT BUS EXCHANGE SWITCH IDT74CBTLV.
The CBTLV16212 provides a set of 24 high-speed switches for bus exchanging and switching.

IDT74CBTLV16212 Features

* 5Ω A/B bi-directional switch Isolation Under Power-Off Conditions Over-voltage tolerant Latch-up performance exceeds 100mA VCC = 2.3V - 3.6V, normal range ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R =

IDT74CBTLV16212 Applications

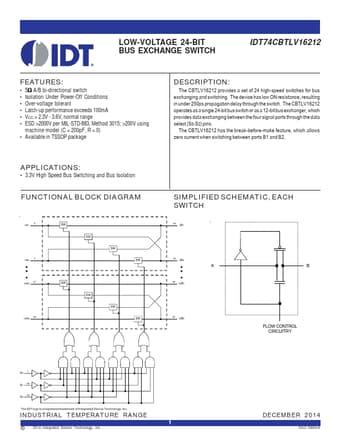

* 3.3V High Speed Bus Switching and Bus Isolation FUNCTIONAL BLOCK DIAGRAM SIMPLIFIED SCHEMATIC, EACH SWITCH 54 1B 1 1A 1 2 SW SW SW 1A 2 3 SW 53 1B 2 A B 12 A 1 27 SW 30 12 B 1 SW SW 12 A 2 28 SW 29 12 B 2 FLOW CONTROL CIRCUITRY S0 1 S1 56 S2 55 INDUSTRIA
