IDT74CBTLV16245

LOW-VOLTAGE 16-BIT BUS SWITCH

IDT74CBTLV16245 Features

* 5Ω A/B bi-directional switch Isolation Under Power-Off Conditions Over-voltage tolerant Latch-up performance exceeds 100mA VCC = 2.3V - 3.6V, normal range ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R =

IDT74CBTLV16245 General Description

The CBTLV16245 is a set of 16-bit bus switches. It has standard 16245 pinouts. The device is organized as dual 8-bit low resistance switches with independent Output Enable (xOE) control inputs. The switches can be turned on under the control of the LVTTL-compatible Output Enable signals (xOE) for .

IDT74CBTLV16245 Datasheet (95.86 KB)

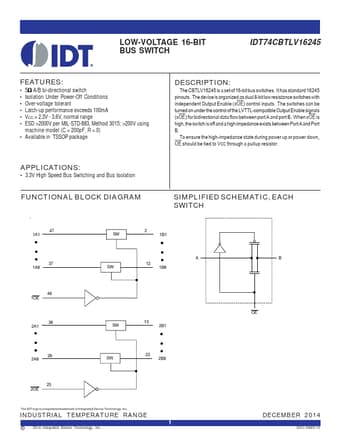

Preview of IDT74CBTLV16245 PDF

Datasheet Details

Part number:

IDT74CBTLV16245

Manufacturer:

Integrated Device Tech

File Size:

95.86 KB

Description:

Low-voltage 16-bit bus switch.
