IDT74CBTLV3245 Datasheet - Integrated Device Technology

IDT74CBTLV3245 LOW-VOLTAGE OCTAL BUS SWITCH

The octal bus switch has standard 245 pinouts. The CBTLV3245 is designed for asynchronous communication between data buses. When Output Enable (OE) is low, the 8-bit bus switch is on and port A is connected to Port B. When OE is high, the switch is off and a high impedance exists between Port A and.

IDT74CBTLV3245 Features

* Pin-out compatible with standard '245 logic 5Ω A/B bidirectional switch Isolation Under Power-Off Conditions Over-voltage tolerant Latch-up performance exceeds 100mA VCC = 2.3V - 3.6V, Normal Range ESD > 2000V per MIL-S

IDT74CBTLV3245_IntegratedDeviceTechnology.pdf

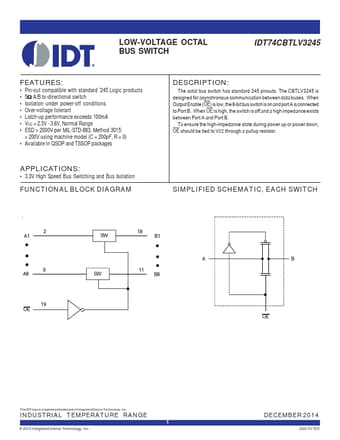

Preview of IDT74CBTLV3245 PDF
IDT74CBTLV3245 Datasheet Preview Page 2 IDT74CBTLV3245 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT74CBTLV3245

Manufacturer:

Integrated Device Technology

File Size:

93.29 KB

Description:

Low-voltage octal bus switch.
