IDT74CBTLV3384 Datasheet, Switch, IDT

IDT74CBTLV3384 Features

• Switch
• 5Ω A/B bi-directional bus switch
• Isolation under power-off conditions
• Over-voltage tolerant
• Latch-up performance exceeds 100mA
• VCC = 2

PDF File Details

Part number:

IDT74CBTLV3384

Manufacturer:

IDT

File Size:

96.06kb

Download:

📄 Datasheet

Description:

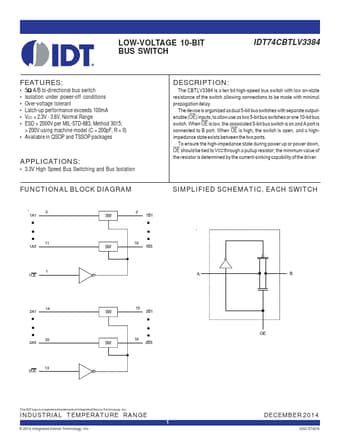

Low-voltage 10-bit bus switch. The CBTLV3384 is a ten bit high-speed bus switch with low on-state resistance of the switch allowing connections to be made with min

IDT74CBTLV3384 Application

• Applications
• 3.3V High Speed Bus Switching and Bus Isolation FUNCTIONAL BLOCK DIAGRAM DESCRIPTION: The CBTLV3384 is a ten bit high-speed
