IDT74CBTLV3257, LOW-VOLTAGE QUAD 2:1MUX/DEMUX BUS SWITCH

IDT74CBTLV3257 LOW-VOLTAGE QUAD 2:1 MUX/DEMUX BUS SWITCH INDUSTRIAL TEMPERATURE RANGE LOW-VOLTAGE QUAD 2:1MUX/DEMUX BUS SWITCH .
The CBTLV3257 is a quad 2:1 multiplexer/demultiplexer.

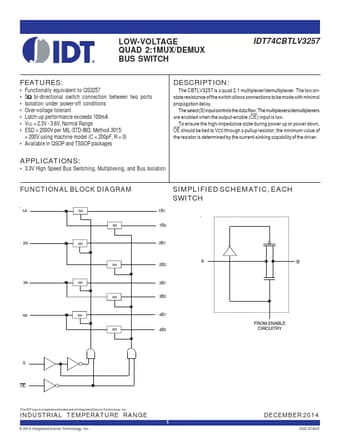

datasheet Preview Page 1 from Datasheet4u.com

IDT74CBTLV3257_IntegratedDeviceTechnology.pdf

IDT74CBTLV3257 Datasheet Preview — Preview of IDT74CBTLV3257 PDF

Datasheet Details

Part number:

IDT74CBTLV3257

Manufacturer:

Integrated Device Tech

File Size:

97.36 KB

Description:

LOW-VOLTAGE QUAD 2:1MUX/DEMUX BUS SWITCH

Features

* Functionally equivalent to QS3257 5Ω Switch Connection between Two Ports Isolation Under Power-Off Conditions Over-voltage tolerant Latch-up performance exceeds 100ma VCC = 2.3V - 3.6V, normal range ESD > 2000V per MIL-

Applications

* 3.3V High Speed Bus Switching, Multiplexing, and Bus Isolation FUNCTIONAL BLOCK DIAGRAM SIMPLIFIED SCHEMATIC, EACH SWITCH 1B1 1A SW SW 1B2 2A SW 2B1 SW 2B2 A B 3A SW 3B1 SW 3B2 4A SW 4B1 SW 4B2 FROM ENABLE CIRCUITRY S OE The IDT logo is a registered trademark of
