IDT74CBTLV3251 Datasheet - Integrated Device Tech

IDT74CBTLV3251 LOW-VOLTAGE 8:1 MULTIPLEXER/ DEMULTIPLEXER

The CBTLV3251 is a 1-of-8 high-speed multiplexer/demultiplexer. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The select input (S0, S1, S2) controls the data flow. The multiplexer/ demultiplexer switches are disabled when the output-enable (.

IDT74CBTLV3251 Features

* Functionally equivalent to QS3251 5Ω Switch Connection between Two Ports Isolation Under Power-Off Conditions Over-voltage tolerant Latch-up performance exceeds 100ma VCC = 2.3V - 3.6V, normal range ESD > 2000V per MIL-

IDT74CBTLV3251_IntegratedDeviceTechnology.pdf

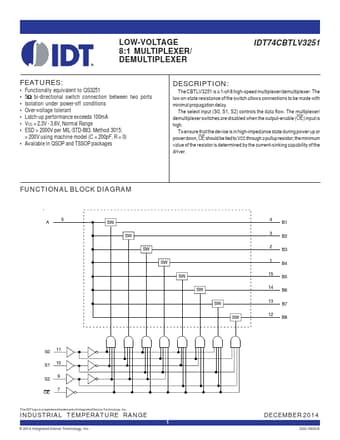

Preview of IDT74CBTLV3251 PDF
IDT74CBTLV3251 Datasheet Preview Page 2 IDT74CBTLV3251 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT74CBTLV3251

Manufacturer:

Integrated Device Tech

File Size:

105.99 KB

Description:

Low-voltage 8:1 multiplexer/ demultiplexer.
