IDTCV140

CLOCK

IDTCV140 Features

* Power management control suitable for notebook applications

* One high precision PLL for CPU, SSC and N programming

* One high precision PLL for SRC/PCI, supports 100MHz output frequency, SSC and N programming

* One high precision PLL for LVDS. Supports 100/96MHz o

IDTCV140 General Description

IDTCV140 is a 56 pin clock device, incorporating both Intel CK410M and CKSSCD requirements, for Intel advance P4 processors. The CPU output buffer is designed to support up to 400MHz processor. This chip has four PLLs inside for CPU, SRC/PCI, LVDS, and 48MHz/DOT96 IO clocks. This device also implem.

IDTCV140 Datasheet (199.20 KB)

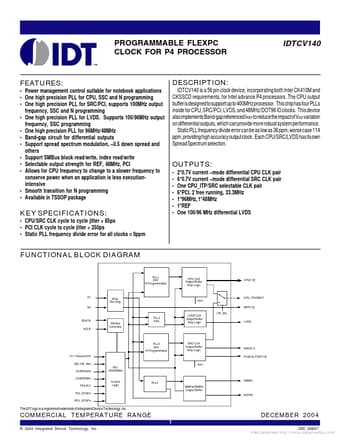

Preview of IDTCV140 PDF

Datasheet Details

Part number:

IDTCV140

Manufacturer:

Integrated Device Technology

File Size:

199.20 KB

Description:

Clock.
