IS61LPD51218A, IS61LPD25636A Datasheet - Integrated Silicon Solution

IS61LPD51218A 256K x 36/ 512K x 18 9Mb SYNCHRONOUS PIPELINED / DOUBLE CYCLE DESELECT STATIC RAM

The ISSI IS61LPD/VPD25636A and IS61LPD/VPD51218A are high-speed, low-power synchronous static RAMs designed to provide burstable, high-performance memory for communication and networking applications. The IS61LPD/ VPD25636A is organized as 262,144 words by 36 bits, and the IS61LPD/VPD51218A is organ.

IS61LPD51218A Features

* Internal self-timed write cycle

* Individual Byte Write Control and Global Write

* Clock controlled, registered address, data and control

* Burst sequence control using MODE input

* Three chip enable option for simple depth expansion and address pipelining

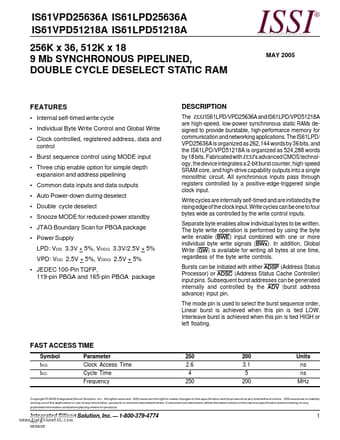

IS61LPD25636A_IntegratedSiliconSolution.pdf

IS61LPD51218A Datasheet Preview — This datasheet PDF includes multiple part numbers: IS61LPD51218A, IS61LPD25636A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS61LPD51218A, IS61LPD25636A

Manufacturer:

Integrated Silicon Solution

File Size:

253.24 KB

Description:

256k x 36/ 512k x 18 9mb synchronous pipelined / double cycle deselect static ram.

Note:

This datasheet PDF includes multiple part numbers: IS61LPD51218A, IS61LPD25636A.
Please refer to the document for exact specifications by model.
