IRF3704ZCLPBF HEXFET Power MOSFET

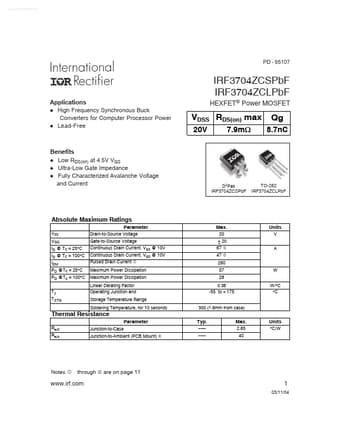

www.DataSheet4U.com PD - 95107 IRF3704ZCSPbF IRF3704ZCLPbF Applications l High Frequency Synchronous Buck Converters for Computer Processor Power l Lead-Free HEXFET® Power MOSFET VDSS RDS(on) max 20V 7.9m: Qg 8.7nC Benefits l Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current D2Pak IRF3704ZCSPbF TO-262 IRF3704ZCLPbF Absolute Maximum Ratings Parameter VDS VGS ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C PD @TC = 100°C TJ TSTG Drain-.

IRF3704ZCLPBF Features

* a sheets. The importance of splitting this gate-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig 16. Qgs2 indicates the charge that must be supplied by the gate driver between the time that the threshold voltage has been reached and the time the drain current rises to Idmax a
