IRF3704ZLPbF - Power MOSFET

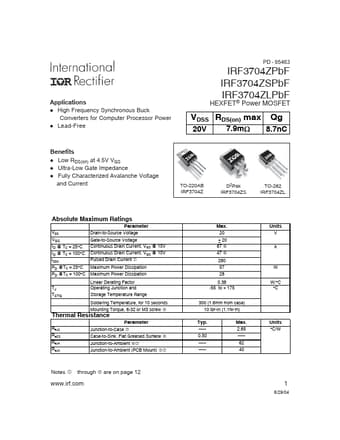

Applications l High Frequency Synchronous Buck Converters for Computer Processor Power l Lead-Free PD - 95463 IRF3704ZPbF IRF3704ZSPbF IRF3704ZLPbF HEXFET® Power MOSFET VDSS RDS(on) max Qg 20V 7.9m: 8.7nC Benefits l Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current TO-220AB IRF3704Z D2Pak IRF3704ZS TO-262 IRF3704ZL Absolute Maximum Ratings Parameter VDS Drain-to-Source Voltage VGS ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C PD @T

IRF3704ZLPbF Features

* ance of splitting this gate-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig 16. Qgs2 indicates the charge that must be supplied by the gate driver between the time that the threshold voltage has been reached and the time the drain current rises to Idmax at which time the dra
