IRF3704ZCSPBF, IRF3704ZCLPBF - HEXFET Power MOSFET

International Rectifier

Datasheet Details

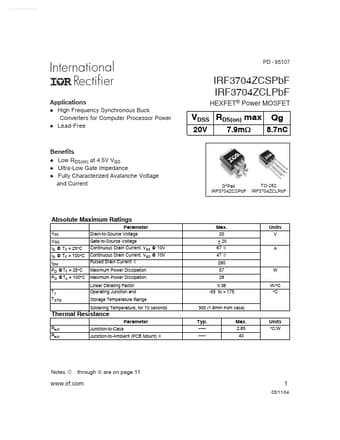

Part number: IRF3704ZCSPBF, IRF3704ZCLPBF
Manufacturer: International Rectifier
File Size: 374.88 KB
Datasheet: IRF3704ZCLPBF_InternationalRectifier.pdf
Description: HEXFET Power MOSFET
Note: This datasheet PDF includes multiple part numbers: IRF3704ZCSPBF, IRF3704ZCLPBF.
Please refer to the document for exact specifications by model.

a sheets. The importance of splitting this gate-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig 16. Qgs2 indicates the charge that must be supplied by the gate driver between the time that the threshold voltage has been reached and the time the drain current rises to Idmax at which time the drain voltage begins to change. Minimizing Qgs2 is a critical factor in reducing switching losses in Q1. Qoss is the charge that must be supplied to the output capacitance of the MOSF.
