IRF3704ZL, IRF3704Z, HEXFET Power MOSFET

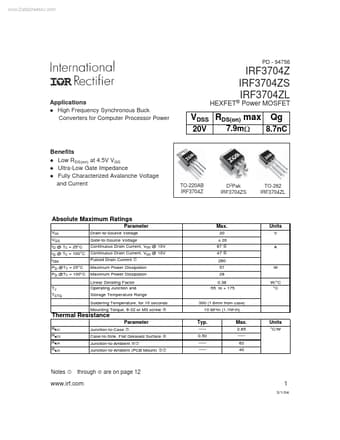

www.DataSheet4U.com PD - 94756 Applications l High Frequency Synchronous Buck Converters for Computer Processor Power HEXFET® Power MOSFET IRF3704.

datasheet Preview Page 1 from Datasheet4u.com

IRF3704Z_InternationalRectifier.pdf

IRF3704ZL Datasheet Preview — This datasheet PDF includes multiple part numbers: IRF3704ZL, IRF3704Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRF3704ZL, IRF3704Z

Manufacturer:

International Rectifier

File Size:

319.39 KB

Description:

HEXFET Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRF3704ZL, IRF3704Z.
Please refer to the document for exact specifications by model.

Features

* loss equation includes the terms Qgs2 and Qoss which are new to Power MOSFET data sheets. Qgs2 is a sub element of traditional gate-source charge that is included in all MOSFET data sheets. The importance of splitting this gate-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig

Applications

* l High Frequency Synchronous Buck Converters for Computer Processor Power HEXFET® Power MOSFET IRF3704Z IRF3704ZS IRF3704ZL Qg 8.7nC VDSS RDS(on) max 20V 7.9m: Benefits l Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current TO-220AB IRF3704Z D2
