IRF3717 - Power MOSFET

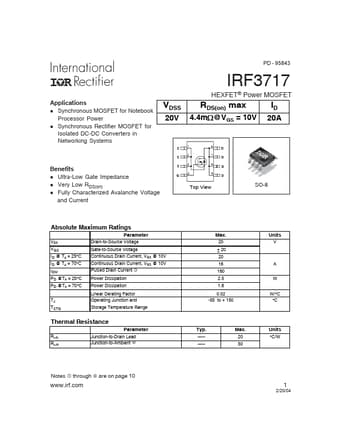

PD - 95843 IRF3717 HEXFET® Power MOSFET Applications l Synchronous MOSFET for Notebook Processor Power l Synchronous Rectifier MOSFET for Isolated DC-DC Converters in Networking Systems VDSS 20V 4.4m:@VGS = 10V A A D D D D RDS(on) max ID 20A S S 1 2 3 4 8 7 Benefits l Ultra-Low Gate Impedance l Very Low RDS(on) l Fully Characterized Avalanche Voltage and Current S G 6 5 Top View SO-8 Absolute Maximum Ratings Parameter VDS VGS ID @ TA = 25°C ID @ TA = 70°C IDM PD @TA = 25°C PD @TA =

IRF3717 Features

* ly, gate charge will impact the MOSFETs’ susceptibility to Cdv/dt turn on. The drain of Q2 is connected to the switching node of the converter and therefore sees transitions between ground and Vin. As Q1 turns on and off there is a rate of change of drain voltage dV/dt which is capacitively coupled

IRF3717_InternationalRectifier.pdf

IRF3717 Datasheet Preview — Preview of IRF3717 PDF

Datasheet Details

Part number:

IRF3717

Manufacturer:

International Rectifier

File Size:

248.87 KB

Description:

Power mosfet.
