IRF520V Datasheet - International Rectifier

IRF520V Power MOSFET

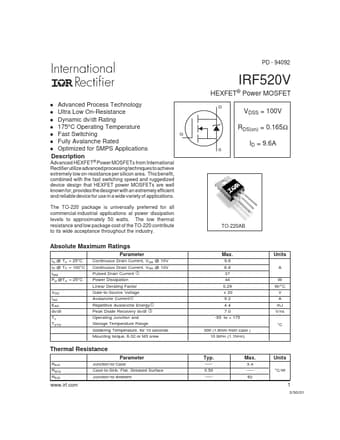

l l D VDSS = 100V RDS(on) = 0.165Ω G S ID = 9.6A Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEX.

IRF520V Features

* .47 (.53 0) 4.06 (.16 0) 3.55 (.14 0) 3X 3X 1 .4 0 (.0 55 ) 1 .1 5 (.0 45 ) 0.93 (.03 7) 0.69 (.02 7) M B A M 3X 0.55 (.02 2) 0.46 (.01 8) 0 .3 6 (.01 4) 2.54 (.10 0) 2X N O TE S : 1 D IM E N S IO N IN G & TO L E R A N C ING P E R A N S I Y 1 4.5M , 1 9 82. 2 C O N TR O L LIN G D IM E N S IO

IRF520V Datasheet (200.53 KB)
