IRF5NJ9540 - P-Channel Power MOSFET

Name: IRF5NJ9540
SKU: IRF5NJ9540-283771

International Rectifier

📥 Download Datasheet

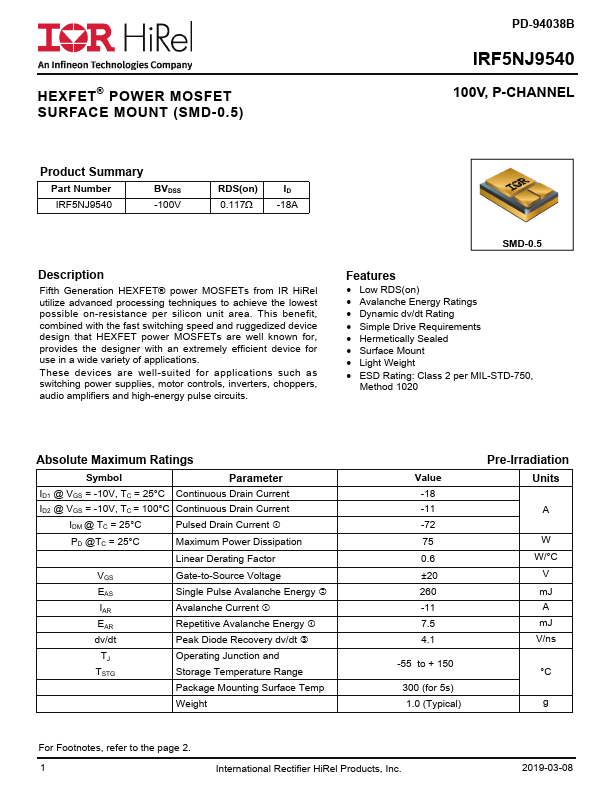

IRF5NJ9540 Datasheet Preview — Preview of IRF5NJ9540 PDF

Datasheet Details

Part number	IRF5NJ9540
Manufacturer	International Rectifier
File Size	2.15 MB
Description	P-Channel Power MOSFET
Datasheet	IRF5NJ9540_InternationalRectifier.pdf

IRF5NJ9540 Product details

Description

Fifth Generation HEXFET® power MOSFETs from IR HiRel utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon unit area.

Features

Low RDS(on).
Avalanche Energy Ratings.
Dynamic dv/dt Rating.
Simple Drive Requirements.
Hermetically Sealed.
Surface Mount.
Light Weight.
ESD Rating: Class 2 per MIL-STD-750, Method 1020 Absolute Maximum Ratings Symbol Parameter ID1 @ VGS = -10V, TC = 25°C Continuous Drain Current ID2 @ VGS = -10V, TC = 100°C Continuous Drain Current IDM @ TC = 25°C Pulsed Drain Current  PD @TC = 25°C Maximum Power Dissipation Linear Derating Factor VGS EAS IA.
