IRF6100 - HEXFET Power MOSFET

Datasheet Summary

Description

True chip-scale packaging is available from International Rectifier.

Through the use of advanced processing techniques, and a unique packaging concept, extremely low on-resistance and the highest power densities in the industry have been made available for battery and load management applications.

📥 Download Datasheet

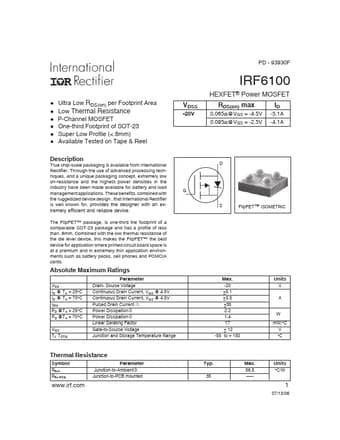

Datasheet preview – IRF6100

📁 Similar Datasheet

  • IRF610 - N-Channel Mosfet Transistor (Inchange Semiconductor)
  • IRF610 - N-Channel Power MOSFET (Intersil Corporation)
  • IRF610 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF610 - Power MOSFET (Vishay)
  • IRF610A - N-Channel Mosfet Transistor (Inchange Semiconductor)
  • IRF610A - Advanced Power MOSFET (Fairchild Semiconductor)
  • IRF610B - 200V N-Channel MOSFET (Fairchild Semiconductor)
  • IRF610L - Power MOSFET (Vishay)
  • IRF610S - Power MOSFET (Vishay)
  • IRF611 - N-Channel Mosfet Transistor (Inchange Semiconductor)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
l Ultra Low RDS(on) per Footprint Area l Low Thermal Resistance l P-Channel MOSFET l One-third Footprint of SOT-23 l Super Low Profile (<.8mm) l Available Tested on Tape & Reel VDSS -20V PD - 93930F IRF6100 HEXFET® Power MOSFET RDS(on) max 0.065Ω@VGS = -4.5V 0.095Ω@VGS = -2.5V ID -5.1A -4.1A Description True chip-scale packaging is available from International Rectifier. Through the use of advanced processing techniques, and a unique packaging concept, extremely low on-resistance and the highest power densities in the industry have been made available for battery and load management applications. These benefits, combined with the ruggedized device design , that International Rectifier is well known for, provides the designer with an extremely efficient and reliable device.
