IRF610L - Power MOSFET

This page provides the datasheet information for the IRF610L, a member of the IRF610S Power MOSFET family.

Datasheet Summary

Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The D2PAK (TO-263) is a surface mount power package capable of accommodating die sizes up to HEX-4.

Features

  • Surface mount.
  • Available in tape and reel.
  • Dynamic dV/dt rating.
  • Repetitive avalanche rated Available.
  • Fast switching.
  • Ease of paralleling Available.
  • Simple drive requirements.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Note.
  • This datasheet provides information about parts that are RoHS-compliant and / or parts that are non-RoHS-compliant. For example, parts w.

📥 Download Datasheet

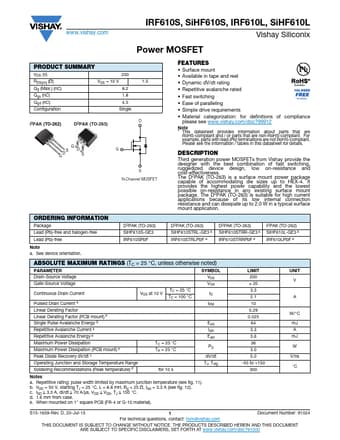

Datasheet preview – IRF610L

Datasheet Details

Part number IRF610L
Manufacturer Vishay
File Size 175.30 KB
Description Power MOSFET
Datasheet download datasheet IRF610L Datasheet
Additional preview pages of the IRF610L datasheet.

📁 Similar Datasheet

  • IRF610 - N-Channel Mosfet Transistor (Inchange Semiconductor)
  • IRF610 - N-Channel Power MOSFET (Intersil Corporation)
  • IRF610 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF6100 - HEXFET Power MOSFET (International Rectifier)
  • IRF6100PBF - HEXFET Power MOSFET (International Rectifier)
  • IRF610A - N-Channel Mosfet Transistor (Inchange Semiconductor)
  • IRF610A - Advanced Power MOSFET (Fairchild Semiconductor)
  • IRF610B - 200V N-Channel MOSFET (Fairchild Semiconductor)
  • IRF611 - N-Channel Mosfet Transistor (Inchange Semiconductor)
  • IRF611 - N-Channel Power MOSFET (Fairchild Semiconductor)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
www.vishay.com IRF610S, SiHF610S, IRF610L, SiHF610L Vishay Siliconix Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 200 VGS = 10 V 8.2 1.8 4.5 Single 1.5 I2PAK (TO-262) D2PAK (TO-263) D G DS G D S G S N-Channel MOSFET FEATURES • Surface mount • Available in tape and reel • Dynamic dV/dt rating • Repetitive avalanche rated Available • Fast switching • Ease of paralleling Available • Simple drive requirements • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non-RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant.
