IRF7702 - Power MOSFET

Datasheet Summary

Description

HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

📥 Download Datasheet

Datasheet preview – IRF7702

📁 Similar Datasheet

  • IRF7704TRPBF - Dual P-Channel MOSFET (VBsemi)
  • IRF7769L1 - Power MOSFET (Infineon)
  • IRF7769L1TRPbF - Power MOSFET (Infineon)
  • IRF710 - N-Channel Power MOSFET (Intersil Corporation)
  • IRF710 - N-Channel MOSFET (INCHANGE)
  • IRF710 - N-Channel MOSFET (ART CHIP)
  • IRF710 - Power MOSFET (Vishay)
  • IRF710A - N-Channel Mosfet Transistor (Inchange Semiconductor)
  • IRF710A - Advanced Power MOSFET (Fairchild Semiconductor)
  • IRF710B - 400V N-Channel MOSFET (Fairchild Semiconductor)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text

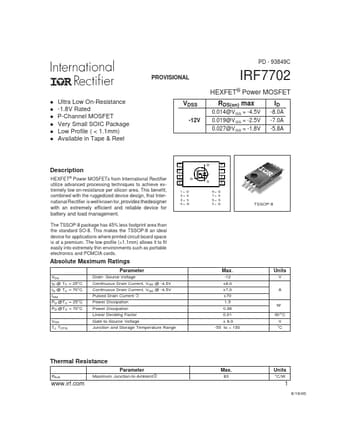

PD - 93849C PROVISIONAL IRF7702 HEXFET® Power MOSFET RDS(on) max 0.014@VGS = -4.5V 0.019@VGS = -2.5V 0.027@VGS = -1.8V l l l l l l Ultra Low On-Resistance -1.8V Rated P-Channel MOSFET Very Small SOIC Package Low Profile ( < 1.1mm) Available in Tape & Reel VDSS -12V ID -8.0A -7.0A -5.8A 1 D 8 7 Description HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the ruggedized device design, that International Rectifier is well known for, provides thedesigner 2 3 4 1= 2= 3= 4= D S S G G 6 S 8= 7= 6= 5= D S S D 5 with an extremely efficient and reliable device for battery and load management.
