IRF7702PbF - Power MOSFET

Datasheet Summary

Description

HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

📥 Download Datasheet

Datasheet preview – IRF7702PbF

📁 Similar Datasheet

  • IRF7704TRPBF - Dual P-Channel MOSFET (VBsemi)
  • IRF7769L1 - Power MOSFET (Infineon)
  • IRF7769L1TRPbF - Power MOSFET (Infineon)
  • IRF710 - N-Channel Power MOSFET (Intersil Corporation)
  • IRF710 - N-Channel MOSFET (INCHANGE)
  • IRF710 - N-Channel MOSFET (ART CHIP)
  • IRF710 - Power MOSFET (Vishay)
  • IRF710A - N-Channel Mosfet Transistor (Inchange Semiconductor)
  • IRF710A - Advanced Power MOSFET (Fairchild Semiconductor)
  • IRF710B - 400V N-Channel MOSFET (Fairchild Semiconductor)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text

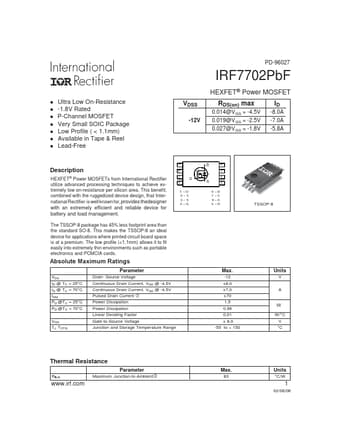

l Ultra Low On-Resistance l -1.8V Rated l P-Channel MOSFET l Very Small SOIC Package l Low Profile ( < 1.1mm) l Available in Tape & Reel l Lead-Free PD-96027 IRF7702PbF VDSS -12V HEXFET® Power MOSFET RDS(on) max 0.014@VGS = -4.5V 0.019@VGS = -2.5V 0.027@VGS = -1.8V ID -8.0A -7.0A -5.8A Description HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the ruggedized device design, that International Rectifier is well known for, provides thedesigner with an extremely efficient and reliable device for battery and load management. ! "B # Ã2Ã9 !Ã2ÃT "Ã2ÃT #Ã2ÃB The TSSOP-8 package has 45% less footprint area than the standard SO-8.
