IRF7811WPBF Datasheet - International Rectifier

IRF7811WPBF, Power MOSFET

PD- 95023A IRF7811WPbF HEXFET® Power MOSFET for DC-DC Converters * * * * * * N-Channel Application-Sp.
This new device employs advanced HEXFET Power MOSFET technology to achieve an unprecedented balance of on-resistance and gate charge.

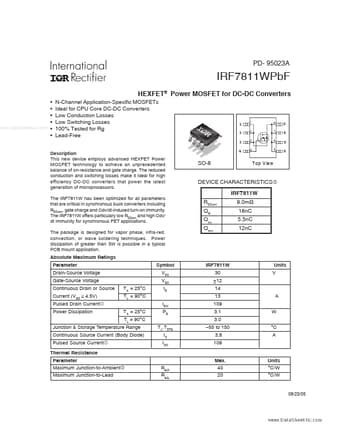

datasheet Preview Page 1 from Datasheet4u.com

IRF7811WPBF_InternationalRectifier.pdf

IRF7811WPBF Datasheet Preview — Preview of IRF7811WPBF PDF

Datasheet Details

Part number:

IRF7811WPBF

Manufacturer:

International Rectifier

File Size:

576.93 KB

Description:

Power MOSFET

Applications

* The package is designed for vapor phase, infra-red, convection, or wave soldering techniques. Power dissipation of greater than 3W is possible in a typical PCB mount application. G SO-8 T o p V ie w DEVICE CHARACTERISTICS IRF7811W RDS(on) QG Qsw Qoss 9.0mΩ 18nC 5.5nC 12nC Absolute Maximum Rat
