IRF7910 Datasheet - International Rectifier

IRF7910 HEXFET Power MOSFET

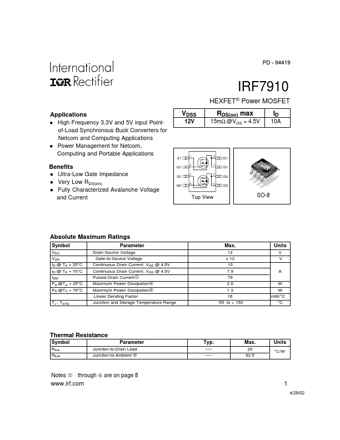

PD - 94419 IRF7910 HEXFET® Power MOSFET Applications l High Frequency 3.3V and 5V input Pointof-Load Synchronous Buck Converters for Netcom and Computing Applications l Power Management for Netcom, Computing and Portable Applications S1 VDSS 12V RDS(on) max 15mΩ @VGS = 4.5V ID 10A 1 8 D1 D1 D2 D2 Benefits l Ultra-Low Gate Impedance l Very Low RDS(on) l Fully Characterized Avalanche Voltage and Current G1 S2 G2 2 7 3 6 4 5 Top View SO-8 Absolute Maximum Ratings Symbol VDS VGS ID.

IRF7910 Features

* his product has been designed and qualified for the Industrial market. Qualification Standards can be found on IR’s Web site. IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information.4/

IRF7910_InternationalRectifier.pdf
