IRFH4209DPBF Datasheet, Mosfet, International Rectifier

IRFH4209DPBF Features

  • Mosfet Low RDS(ON) (<1.10 m) Schottky Intrinsic Diode with Low Forward Voltage Low Thermal Resistance to PCB (<1.0°C/W) Low Profile (<0.9 mm) Industry-Standard Pinout Compatible with Existing

PDF File Details

Part number:

IRFH4209DPBF

Manufacturer:

International Rectifier

File Size:

483.13kb

Download:

📄 Datasheet

Description:

Power mosfet. Dimension design to accommodate the component width Dimension design to accommodate the component lenght Dimension design to accommod

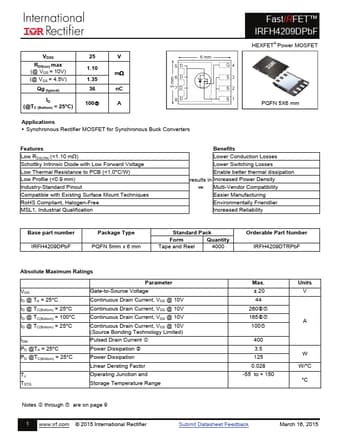

Datasheet Preview: IRFH4209DPBF 📥 Download PDF (483.13kb)
Page 2 of IRFH4209DPBF Page 3 of IRFH4209DPBF

IRFH4209DPBF Application

  • Applications
  • Synchronous Rectifier MOSFET for Synchronous Buck Converters FastIRFET™ IRFH4209DPbF HEXFET® Power MOSFET   PQFN 5X6 mm Fea
